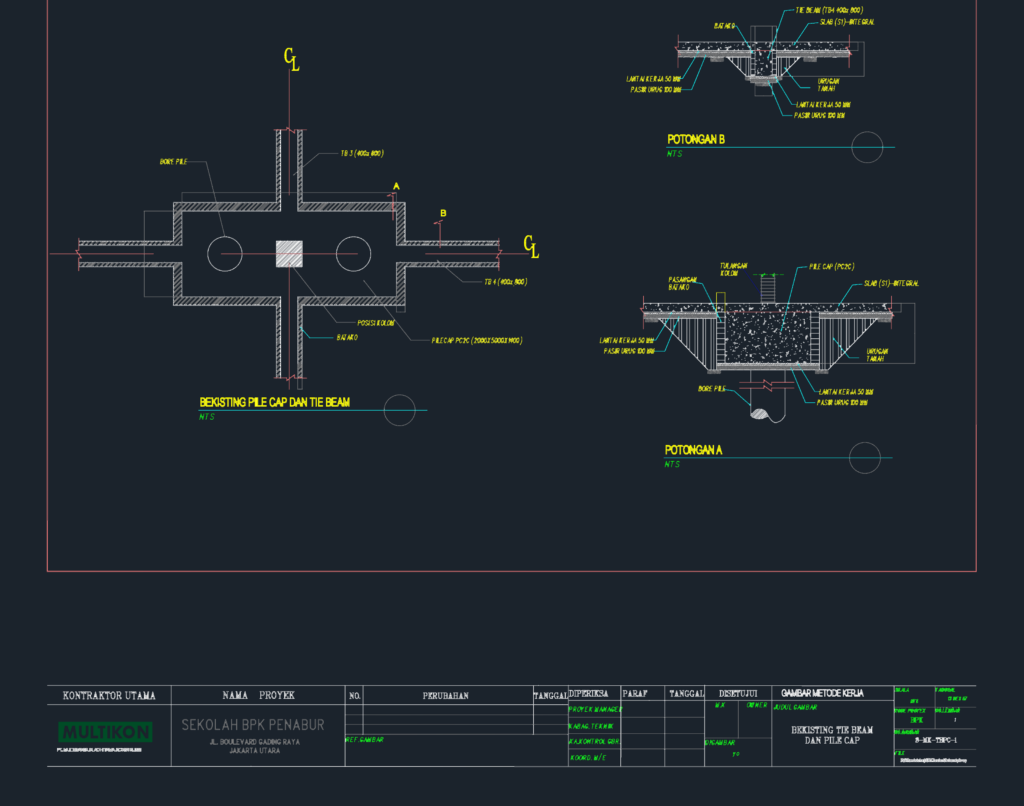

formwork details for PC2C pile caps (2000x5000x1400) and TB4 tie beams. incl. sections A & B, soil backfill, 100mm sand bedding, and 50mm lean concrete specs. shows bore pile connections & column positioning for a basement foundation… Bekisting pile cap dan tie beam.
TB4 Tie Beam & PC2C Pile Cap Details
