Templet Construction Steel DWG Block for AutoCAD

Templet Construction Steel DWG Block for AutoCAD

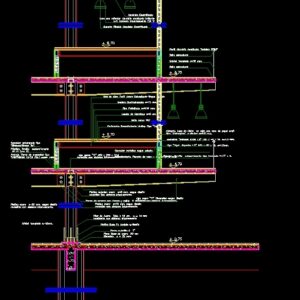

Straightedge construction steel

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

beam steel dimension according to design coated with intumescent system., beam coated steel with intumescent system., anodized aluminum profile, structural seal, Tempered glass mm., structural seal, Type stamped connector, fixation self-drilling screw no, anchorage type expansion bolt according to, metal connector as calculated, extra upright mm., insulator rolled glass wool with similar paper face type craft mm., fixation self-piercing screw trumpet, coating plasterboard carton mm., upper beam, floor beam profile galvanized steel as calculated, polyethylene film mm., plywood mm., mesh acma, cm concrete slabs., pavement vinyl flooring floor, double-sided double-faced lined panel double luxalon mm. with injected polyurethane insulation. bent in factory., curtain wall profile anodised aluminum indalum, tempered glass, close metal profile type dimensions as calculated, spotlight with bright anodized aluminum reflector incandescent lamp, mounting bracket electrified gutter, electrified gutter, tempered glass, lid anodized aluminum profile, tempered glass, polyurethane separator, anodized aluminum profile, lid anodized aluminum profile, anodized aluminum profile, coating stainless steel plate mm., compressed natural terrain free of organic matter, Waterproofing felt of pounds, compacted decoy bed cm, pavement concrete layer plated with helicopter, sand bed, radier fined cm, embalming beam foundation h.a according to calculation, foundation isolated h.a according to calculation, beam foundation h.a according to calculation, beam h. according to calculation, beam friction h.a according to calculation, flatbed base anchorage, steel base plate cm diameter mm., clamping pin, steel pillar cm tube. mm coated with intumescent system, steel plate mm. according to design coated with intumescent system., bolt nut tie hook l. cm., steel plate mm. according to design coated with intumescent system., plate steel fastening mm. according to design coated with intumescent system., tempered glass, escantillon esc escaperillon

Raw text data extracted from CAD file:

- 7.20 - 3.60 + 0.75 + 4.70 + 5.70 + 8.70 + 9.70 viga acero "TT" Dimension segun diseño revestida con sistema intumescente. viga acero "TT" 450 x 250 x 17.5 revestida con sistema intumescente. Perfil Aluminio Anodizado "Indalum 5383" Sello estructural Cristal Templado e=16 mm. Sello estructural Conector estampado tipo "SimpsonStrong Tie". Fijacion. Tornillo autoperforante Nº 12 (son 9) Anclaje. Perno de expansion tipo "Hilti"HSLBM 12/25 (tip.) segun calculo). Conector metalico segun calculo Montante "murogal Extra 1.2" 100 x 40 x 12. e=1.2 mm. Aislante. Lana de vidrio en rollo con cara de papel craft tipo "Aislanglass" o similar e=100 mm. Fijacion. Tornillo autoperforante \ltipo trompeta 11/2" x 6. Revestimiento. Plancha de yeso - carton e=15 mm. Viga "Vigal Superior 1.6" 200 x 50 x 16. e=1.6mm. Viga de piso. Perfil Acero Galvanizado Segun Calculo Film Polietileno e=0.15 mm. Madera Contrachapada e=15 mm. Malla Acma C92 Loseta de Hormigon e=5 cm. Pavimento. Revestimiento Vinilico Piso "Tarkett" Cubierta panel doble cara aluzinc prepintado tipo "Sandwwich Deck" Luxalon e=85 mm. con aislacion de poliuretano inyectado. Doblado en fabrica. Muro cortina perfil aluminio anodizado "stick One" indalum Cristal templado e=10mm. Cercha. Perfil metalico tipo C Dimensiones segun Calculo Cercha. Perfil metalico tipo L Dimensiones segun Calculo Foco con reflector Aluminio anodizado brillante c/n Lampara Incandescente 150 W Soporte fijación Canaleta Electrificada Canaleta Electrificada Cristal templado e=10mm. Tapa. Perfil aluminio anodizado "Indalum 5313" Cristal templado e=10mm. Separador de Poliuretano Perfil aluminio anodizado "Indalum 5314" Tapa. Perfil aluminio anodizado "Indalum 3507" Perfil aluminio anodizado "Indalum 5389" Revestimiento. Placa de Acero Inoxidable e=10 mm. Terreno natural compactado libre de materia organica Fieltro Impermeabilizante de 15 Libras Cama de ripio compactado e =10 cm Pavimento Estacionamiento; Capa De Hormigon Platachada Con Helicoptero Cama de Arena e = 2cm Radier Afinado 255 Kg/cem/m3 e = 5 cm D1 D2 D3 Enfierradura Viga Fundacion H.A.según cálculo Fundacion Aislada H.A.según cálculo Viga Fundacion H.A.según cálculo Viga Fundacion H.A.según cálculo Viga H.A.según cálculo Enfierradura Viga H.A.según cálculo Pletina Base Fe Anclaje s/diseño Placa Base de acero 60 cm Diametro e = 20 mm. Perno sujeción Ø 1" Pilar de Acero Tubo Ø 45 cm. e = 10 mm recubierto con sistema intumescente Pletina acero e=10 mm. segun diseño revestido con sistema intumescente. Perno de amarre con tuerca y golilla Ø 1" L. 10 cm. Pletina acero e=20 mm. segun diseño revestido con sistema intumescente. Pletina sujecion acero e=8 mm. segun diseño revestido con sistema intumescente. Cristal templado e=10mm. Corte Escantillon A esc. 1 : 25

Language	N/A
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Steel, Wood
Measurement Units
Footprint Area
Building Features	Deck / Patio
Tags	autocad, block, building, construction, DETAIL, DWG, stahlrahmen, stahlträger, steel, steel beam, steel frame, straightedge, structure en acier, templet
