Thermal Insulations – Walls And Floors DWG Detail for AutoCAD

Rock wool-based insulating boards – 8 details with technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

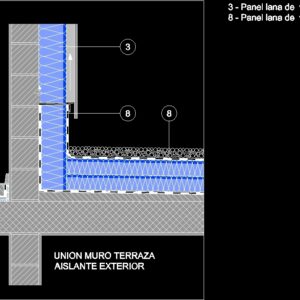

Union wall between floor, Panel glass wool flumroc floor plate flumroc, Dry terrace, Glass wool panel flumroc panel glass wool flumroc iglu panel glass wool flumroc mega insulation element for thermal bridge rupture, Thermal bridge break in eaves, Glass wool panel flumroc anchor flumroc floor plate, Lintel over window, Panel glass wool flumroc panel glass wool flumroc floor plate flumroc prefabricated lintel, Mezzanine, Panel glass wool flumroc duo floor plate flumroc cavity for ventilation, Dry terrace, Panel glass wool flumroc duo panel glass wool flumroc mega cavity for ventilation, Mezzanine, Panel glass wool flumroc duo floor plate flumroc anchor cavity for ventilation, Union, Panel glass wool flumroc duo panel glass wool flumroc prima, Specifications.zip contains the product line of flumroc a.g.for insulation, With its technical specifications in .ht format

Raw text data extracted from CAD file:

16 11 1 UNION MURO Y ENTRE PISO 1 – Panel lana de vidrio Flumroc 1 11 – Placa de piso Flumroc 16 6 1 23 10 TERRAZA SECA 1 – Panel lana de vidrio Flumroc 1 6 – Panel lana de vidrio Flumroc IGLU 10 – Panel lana de vidrio Flumroc MEGA 23 – Elemento aislante para ruptura de puente térmico 16 11 1 24 RUPTURA PUENTE TERMICO EN ALERO 1 – Panel lana de vidrio Flumroc 1 24 – Anclaje 11 – Placa de piso Flumroc 16 11 2 1 28 DINTEL SOBRE VENTANA 1 – Panel lana de vidrio Flumroc 1 2 – Panel lana de vidrio Flumroc 3 11 – Placa de piso Flumroc 28 – Dintel prefabricado 16 11 30 3 ENTREPISO 3 – Panel lana de vidrio Flumroc DUO 11 – Placa de piso Flumroc 30 – Cavidad para ventilación 16 30 3 10 TERRAZA SECA 3 – Panel lana de vidrio Flumroc DUO 10 – Panel lana de vidrio Flumroc MEGA 30 – Cavidad para ventilación 16 11 24 30 3 ENTREPISO – ALERO RUPTURA DE PUENTE TERMICO 3 – Panel lana de vidrio Flumroc DUO 11 – Placa de piso Flumroc 24 – Anclaje 30 – Cavidad para ventilación 3 8 8 UNION MURO TERRAZA AISLANTE EXTERIOR 3 – Panel lana de vidrio Flumroc DUO 8 – Panel lana de vidrio Flumroc PRIMA ESPECIFICACIONES.ZIP CONTIENE LA LINEA DE PRODUCTOS DE FLUMROC A.G.PARA AISLACIONES CON SUS ESPECIFICACIONES TECNICAS EN FORMATO .HTM
