Complete Architectural Documentation for Modern Villa
This comprehensive set of architectural drawings details a three-story residential villa with basement, ground floor, and second floor layouts. This design features a modern rectangular footprint on a 512m² lot with 96m perimeter.
Structure & Layout:
– Basement (N.P.T -1.05): Features garage with vehicle parking spaces and storage areas
– First Floor (N.P.T +1.55): Contains kitchen, dining area, living space, study/office, bedrooms with attached bathrooms, and visitor bathroom
– Second Floor (N.P.T +4.45): Houses additional bedrooms including master bedroom with ensuite facilities
Outdoor Amenities:
– Swimming pool with surrounding terrace area
– Wood pergola (sol y sombra) structure for shade
– Landscaped garden spaces
– Property boundary walls with specified heights (1.10-1.20m)

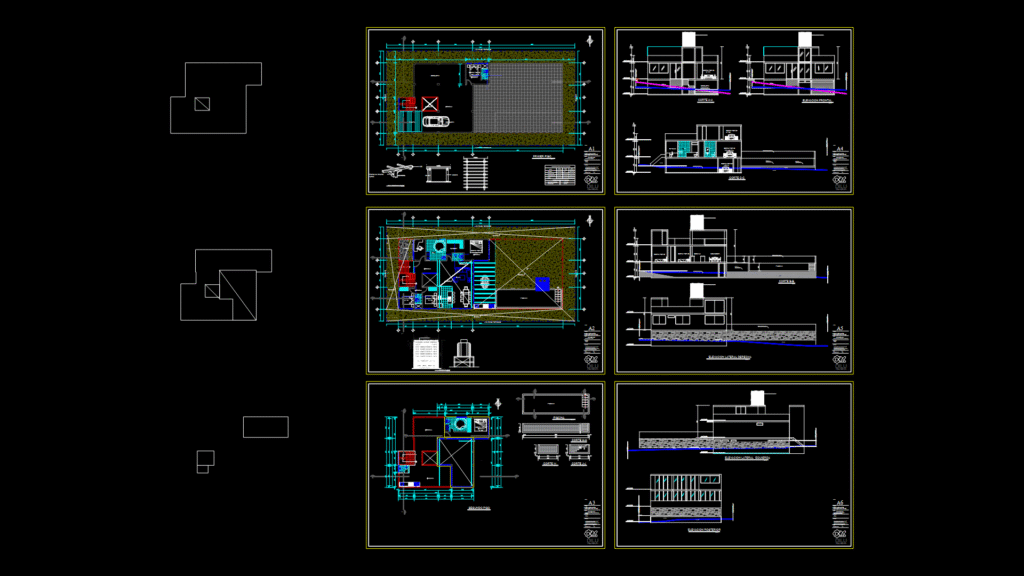

The drawing set includes multiple cross-sections (A-A, B-B, C-C) showing the vertical relationships between spaces, front/rear elevations, and side elevations from both directions. Detailed area calculations indicate a total building footprint of 324.20m² with 368m² of open space. Construction appears to employ concrete structural elements with modern fenestration systems and considered circulation between levels via internal staircases.
Notably, the design incorporates numerous bathrooms (5+), suggesting a focus on convenience and privacy for residents and guests, while the inclusion of dedicated study spaces reflects contemporary home office requirements.
