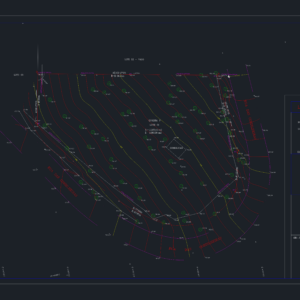

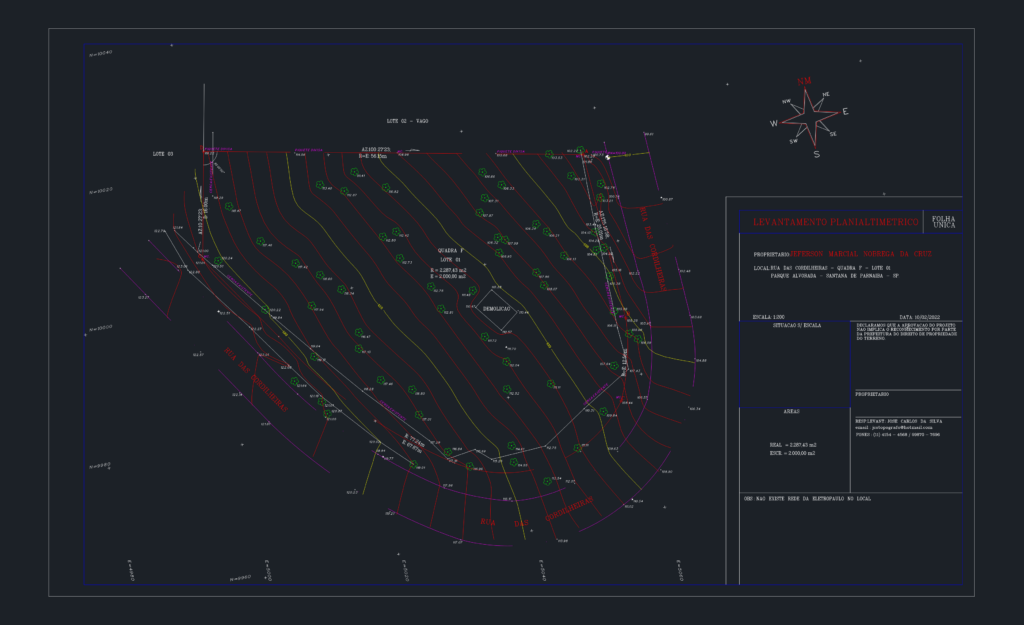

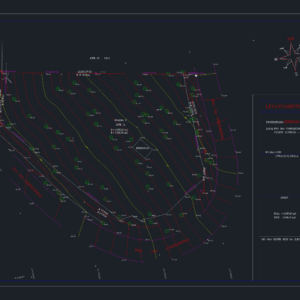

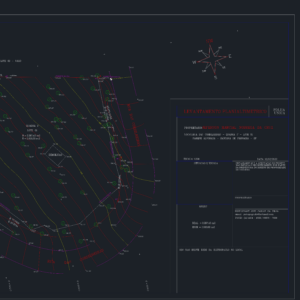

Topographic survey of a 2,287 m² plot in Santana de Parnaíba. Full planimetric and atimetric data incl. contours, coordinates, and property boundaries. I’ve included the existing fences, tree positions, and the demolition area in the middle. Azimuths and distances for all boundaries are marked clearly. It’s at 1:200 scale, metric units.Levantamento Planialtimétrico completo com curvas de nível e divisas.
Topographic Survey DWG of Residential Plot in Santana de Parnaíba
