Turning Radii Gandolas DWG Block for AutoCAD

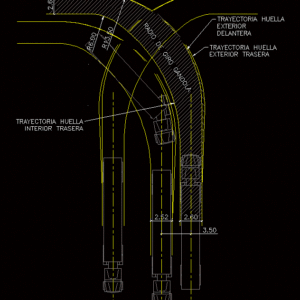

Turn of a truck with trailer gandola or 18 m long.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

trajectory exterior footprint, front exterior footprint path, rear interior footprint path, turning radius gandola

Raw text data extracted from CAD file:

R13.50 R6.00 2.60 2.60 2.52 3.50 TRAYECTORIA HUELLA EXTERIOR TRASERA TRAYECTORIA HUELLA EXTERIOR DELANTERA TRAYECTORIA HUELLA INTERIOR TRASERA 5 5 5 5 RADIO DE GIRO GANDOLA 5 5
