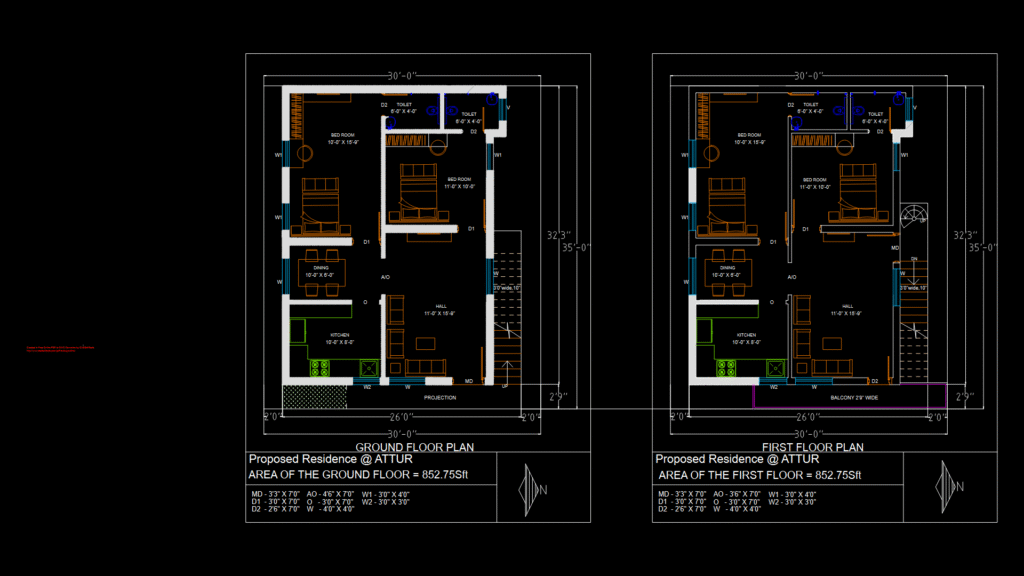

This comprehensive floor plan depicts a two-storey residence with identical 852.75 sq.ft footprints on each level. The layout features a functional arrangement with ground floor comprising a hall (11’0″ x 15’9″), kitchen (10’0″ x 8’0″), dining area (10’0″ x 6’0″), and two bedrooms (10’0″ x 15’9″ and 11’0″ x 10’0″) with attached toilets (6’0″ x 4’0″). The first floor maintains the same room dimensions with the addition of a 2’9″ wide balcony. Both floors are connected by a 3’0″ wide staircase with 10″ risers. The overall dimensions are 30’0″ x 35’0″ with a 2’9″ projection. Door specifications include main doors (MD) at 3’3″ x 7’0″, standard doors (D1) at 3’0″ x 7’0″, and smaller doors (D2) at 2’6″ x 7’0″. Windows come in three variations: standard (W) at 4’0″ x 4’0″, medium (W1) at 3’0″ x 4’0″, and small (W2) at 3’0″ x 3’0″. The efficient circulation pattern minimizes wasted space while providing comfortable living areas in this compact design.
Two-Storey Residential Floor Plan with 852.75 sq.ft per Level
