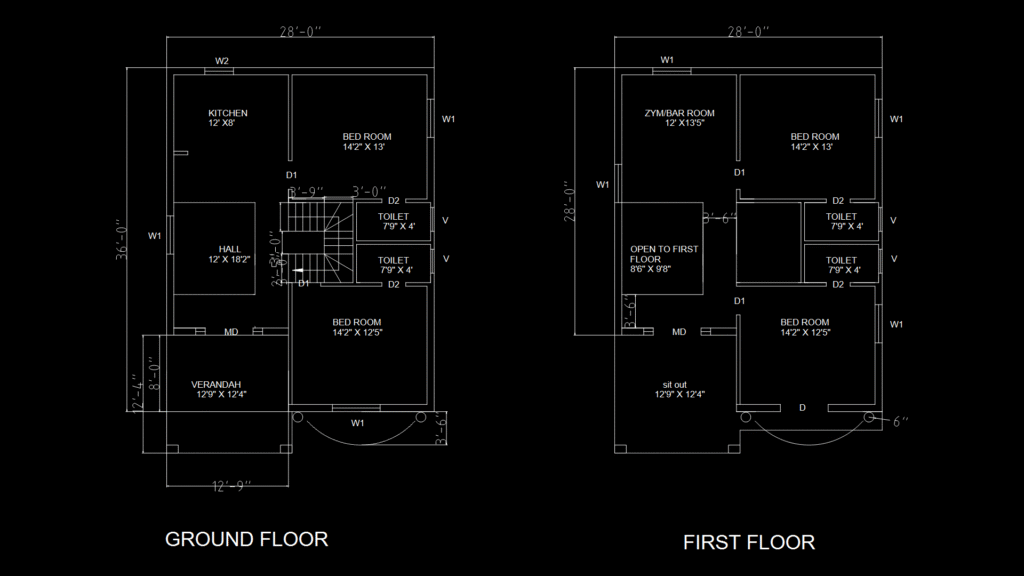

This floor plan depicts a compact two-story residential dwelling with dimensions of 36′ × 28′. The ground floor features a central hall (12′ × 18’2″) with adjacent kitchen (12′ × 8′) and two bedrooms (14’2″ × 12’5″ and 14’2″ × 13′). Each bedroom connects to its own toilet (7’9″ × 4′). A verandah (12’9″ × 12’4″) extends from the front of the structure, with a curved entry path featuring 6″ radius corners. The first floor includes two additional bedrooms (14’2″ × 12’5″ and 14’2″ × 13′) with private toilets, plus a gym/bar room (12′ × 13’5″). A central opening (8’6″ × 9’8″) provides visual connection between floors. The design includes multiple door types (D1, D2, MD) and windows (W1, W2), with a staircase providing vertical circulation. The efficient layout maximizes living space within a modest footprint, offering both private and communal areas across its dual levels.
Two-Story Residential Floor Plan with Gym/Bar Room & Verandah
