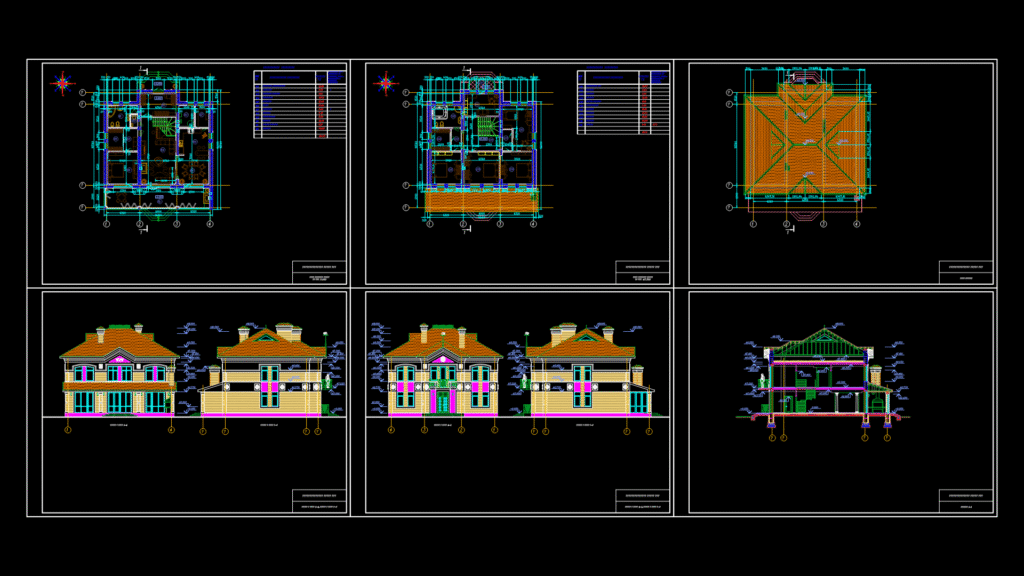

This comprehensive architectural drawing set depicts a two-story family residence with a total area of approximately 164.55 m². This ground floor features an open-concept layout with a spacious living room (39.01 m²), kitchen (15.68 m²), dining area (13.44 m²), guest bathroom, utility room, and verandah (34.86 m²). The second floor accommodates four bedrooms ranging from 11.10 m² to 18.72 m², two bathrooms, a home office, and a balcony (1.42 m²). The structure incorporates a hip roof with decorative chimneys and features multiple window configurations. Construction materials include brick and masonry walls with concrete structural elements. The design includes a fireplace in the living area and follows a traditional aesthetic with modern spatial organization. Elevation drawings show height measurements from -0.050 m at foundation level to +11.000 m at the roof peak, with floor-to-ceiling heights of approximately 3 meters.
Two-Story Residential villa Floor Plans, Elevations & Section
