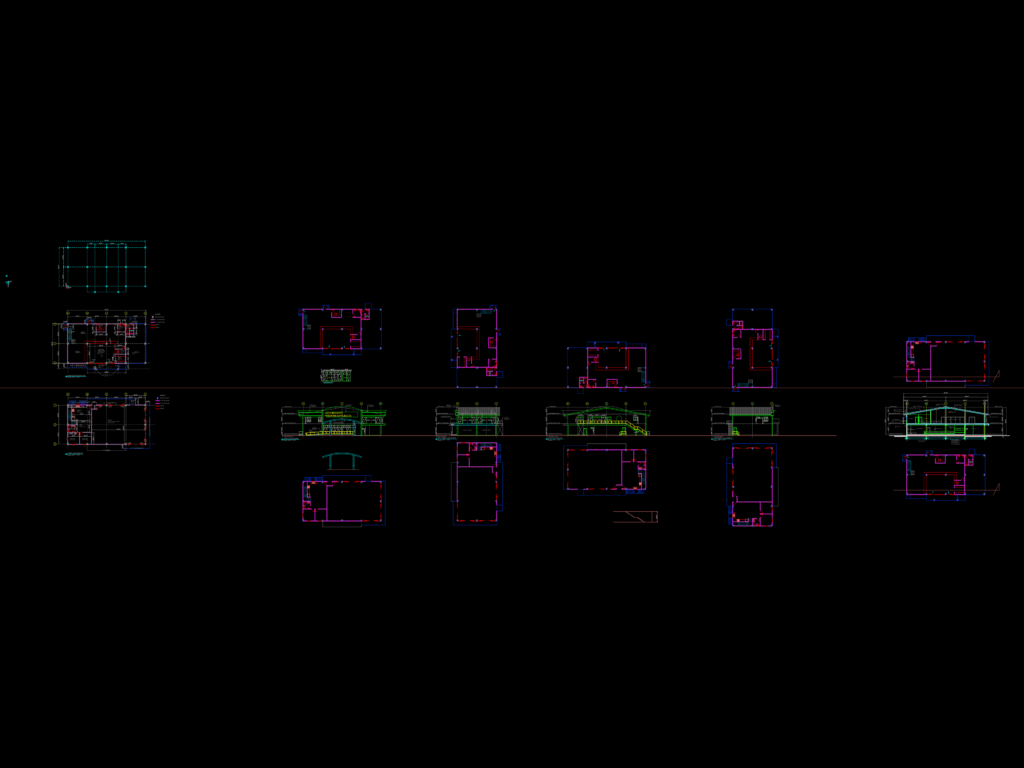

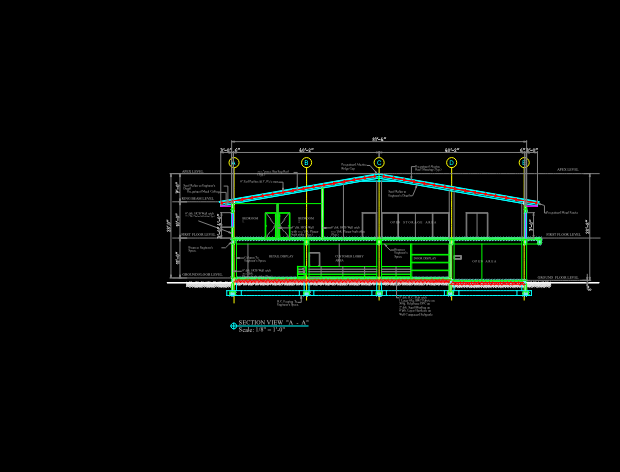

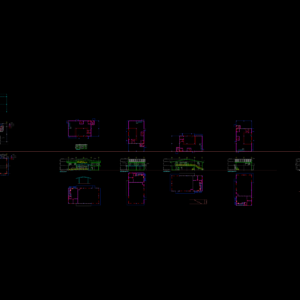

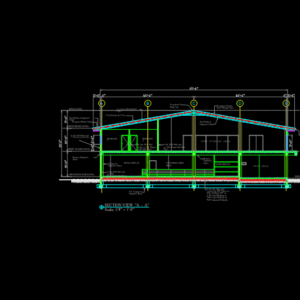

Uncle Beddoe’s Hardware store layout including ground floor retail and a first-floor residential unit. Ground floor features a loading bay with electric hoist, 40′ x 55′ open storage, and a customer lobby area. First floor is a 2-bedroom apartment with kitchen/dining and living space. technical specs show 14″ dia. steel columns on 16″ sq. pedestals and 6″ thk. HCB walls with 1/2″ plaster typ. roof construction details cover aluzinc sheeting on 7″ zed purlins @ 3′-0″ c/c max. we’ve also included the full shop front and 4-side elevations plus section A-A showing slab buildup (5″ RC with BRC fabric).
Uncle Beddoe’s Hardware Supplies Store Plans and Elevations
