Urban Subdivision Plan DWG with Plot Layout & Roads

Name: Urban Subdivision Plan DWG with Plot Layout & Roads
Brand: Designs CAD
SKU: 853730
Price: 3.87 USD
Availability: InStock

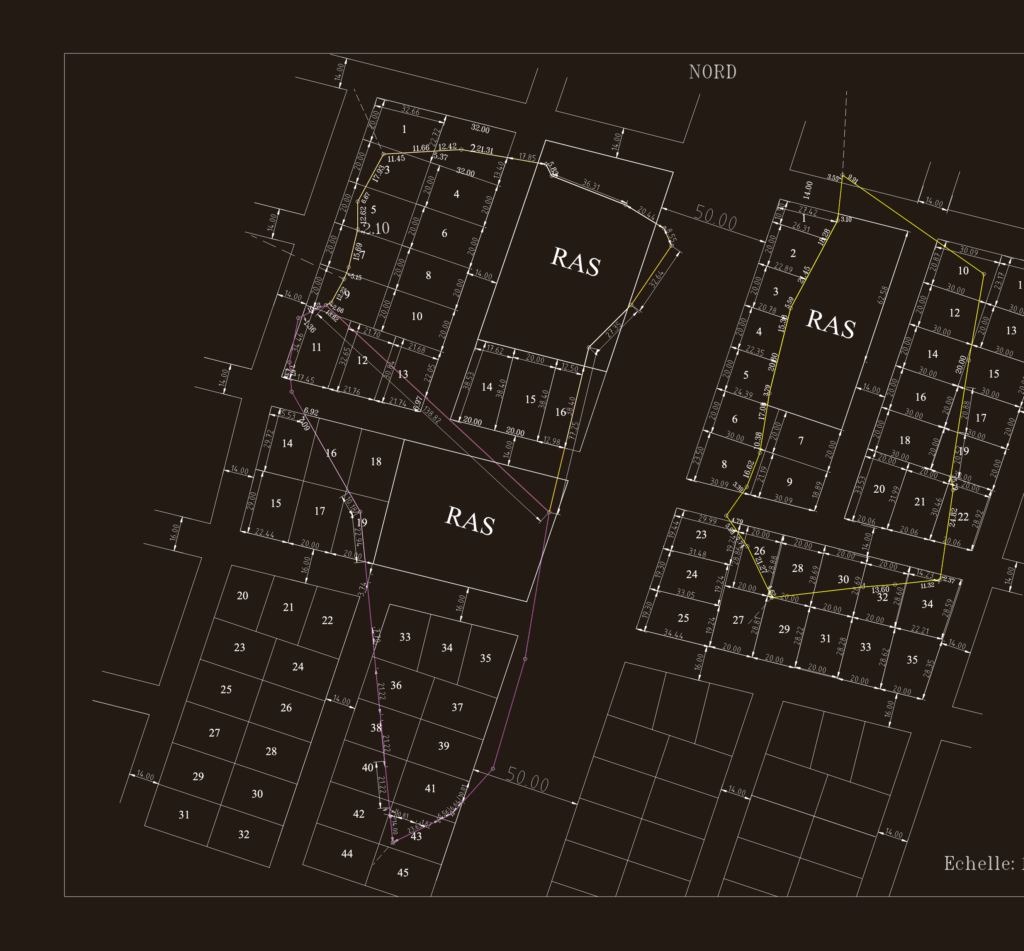

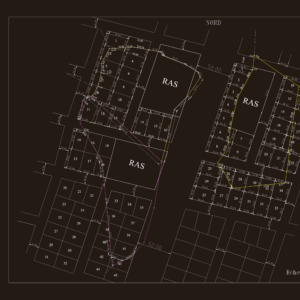

CAD subdivision plan showing numbered land plots, 20m and 16m road widths, and parcel dimensions at 1:2000 scale.

Lotting plan for a neighborhood subdivision incl. parcel boundaries, plot numberig, & road widths from 16m to 50m. Scale is 1:2000, covering several blocks with full dimensions and North orientation…

PREMIUM

File Details

File Type: DWG
Type: Plan
Language: French
Materials: N/A
Units: Metric
Area: Over 5000 m² (53819.5 ft²)
Features: Garden / Park, Parking
Uploaded by: Mira Blocks
Category: City Plans, Public Facilities
Published: Jun 11, 2026

Price $3.87

or get unlimited access from $7/mo
