Vertical Garden – Details DWG Detail for AutoCAD

Vertical Garden – Details DWG Detail for AutoCAD

Details – specifications – sizing

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

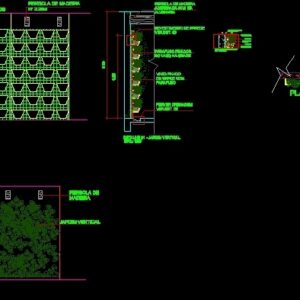

vertical garden detail, esc .:, perver drainage see det., grid-fixed vessel with screw, screw fixing the vase on the grid, wallcovering see det., wooden pergola in the masonry., wall waterproofing, esc .: no scale, socket screw, masonry waterproofed asphalt blanket., black Earth, ferns, grid fixed to wall already imperm., plastic vase black color, view mount garden vertical vases, qtd. units., esc .:, grid attached to wall, potted plants fixed to the grid, waterproofed wall with asphalt blanket, wooden pergola h:, wooden pergola, vertical garden, vertical garden view, esc .:, ground floor garden vertical, grid attached to wall, waterproofed wall with asphalt blanket

Raw text data extracted from CAD file:

\A1;1.95 \A1;2.50 \A1;.05 \A1;.19 \A1;.15 \A1;.10 5 5 DETALHE 01 - JARDIM VERTICAL ESC.: 1/25 PERVER DRENAGEM VER DET. 02 VASO FIXADO EM GRADE COM PARAFUSO PARAFUSO FIXADOR DO VASO NA GRADE REVESTIMENTO DE PAREDE VER DET. 03 PERGOLA DE MADEIRA ADENTRADA 3CM NA ALVENARIA. DET 03 - PAREDE IMPERMEABILIZADA ESC.: SEM ESCALA 5 5 5 PARAFUSO DE ENCAIXE ENTRE VASO E GRADE ALVENARIA IMPERMEABILIZADA DE MANTA ASFALTICA. 5 TERRA PRETA SAMAMBAIAS GRADE FIXADA SOBRE A PAREDE JA IMPERM. VASO DE PLÁSTICO COR PRETO VISTA 05 - MONTAGEM JARDIM VERTICAL - VASOS Qtd. Vasos:140 unidades. ESC.: 1/50 GRADE FIXADA SOBRE A PAREDE VASOS DE PLANTAS FIXADOS AS GRADE PAREDE IMPERMEABILIZADA COM MANTA ASFALTICA PERGOLA DE MADEIRA H: 2.20M PERGOLA DE MADEIRA JARDIM VERTICAL VISTA 05 - JARDIM VERTICAL ESC.: 1/50 PLANTA BAIXA - JARDIM VERTICAL GRADE FIXADA SOBRE A PAREDE PAREDE IMPERMEABILIZADA COM MANTA ASFALTICA

Language	Portuguese
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Masonry, Plastic, Wood
Measurement Units
Footprint Area
Building Features	Garden / Park
Tags	autocad, DETAIL, details, DWG, garden, sizing, specifications, vertical
