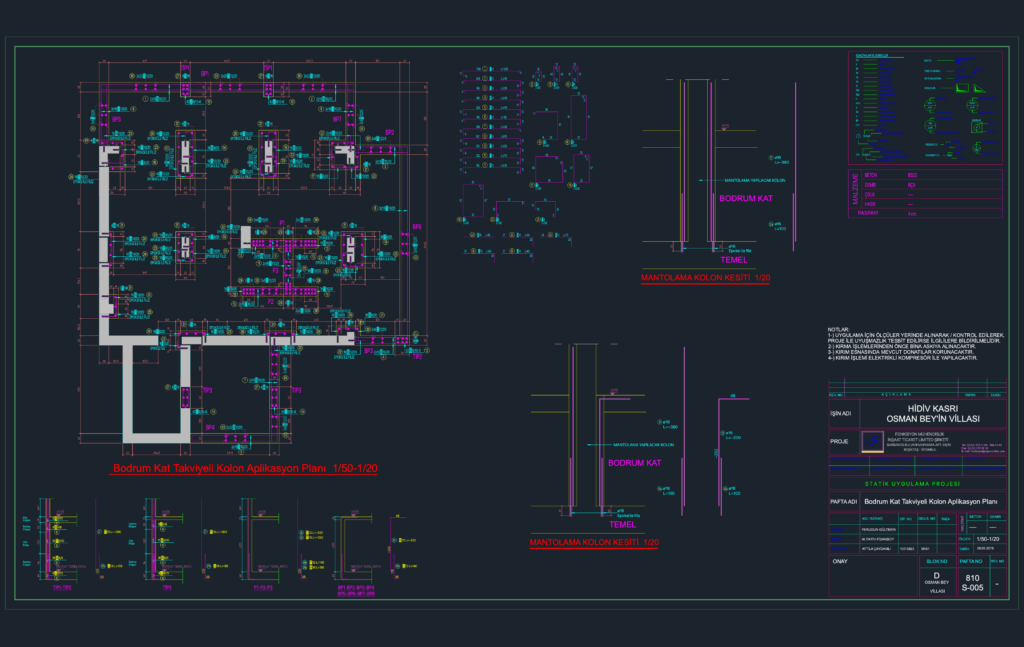

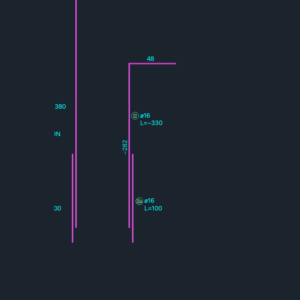

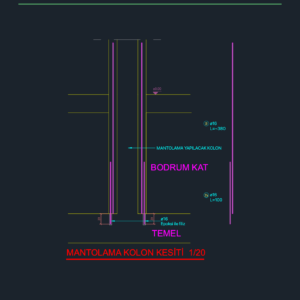

Basement floor structural plan for column reinforcement on a villa project. Shows the full application layout at 1/50 scale and specific column jacketing (mantolama) sections at 1/20. Includes comprehensive reinforcement tables, bar bending schedules and notes on epoxy anchors and material specs like BS20 concrete and BÇIII steel. You get the full symbol legend and technical abbreviations used throughout the sheet. It’s a solid reference for structural retrofitting or basement foundation work. coers sections, plans, the usual reinforcement details etc.
Villa Basement Reinforced Column Jacketing and Application Plan
