Wall Glass Finish DWG Detail for AutoCAD

Wall Glass Finish DWG Detail for AutoCAD

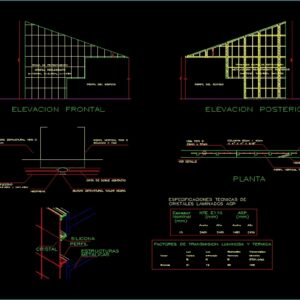

Wall Glass Finish – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

glass, silicone, profile, metal, structures, front elevation, rear elevation, reflective glass, coating pattern, building profile, structure wall weave, metal without back coating, welded to beam, structural steel beam type c, tape double contact, reflective glass, neoprene, structural silicon color black, vertical profile type c, thickness, nominal, agp, width, height, factors of light and thermal transmission, color, thermal, visible, infrared, thermal, radiation, light, transmission, bronze, technical specifications of laminated glass agp, plant, structural metal sheet, support beams for metal structure, beam type c, see details

Raw text data extracted from CAD file:

\A1;19.29° \A1;17.60 \A1;17.60 \A1;19.29° \A1;9.4 CRISTAL SILICONA PERFIL METALICAS ESTRUCTURAS ELEVACION FRONTAL ELEVACION POSTERIOR CRISTAL REFLECTANTE e=10mm, H=2.40m, L=1.45m TRAMA DE REVESTIMIENTO PERFIL DEL EDIFICIO 5 5 TRAMA DE MURO DE ESTRUCTURA METALICA SIN REVESTIMIENTO POSTERIOR e=10mm, H=2.40m, L=1.45m PERFIL DEL EDIFICIO 5 5 9.4 SOLDADO A VIGA 20cm x 30cm VIGA DE ACERO ESTRUCTURAL TIPO C CINTA DE DOBLE CONTACTO CRISTAL REFLECTIVO NEOPRENE SILICON ESTRUCTURAL COLOR NEGRO e=10mm, H=2.40m x L=1.45m PERFIL VERTICAL TIPO C Espesor Nominal NTE E110 (mm) (mm) AGP (mm) Ancho Ancho Alto Alto 1450 2400 3160 2400 10 FACTORES DE TRANSMISION LUMINOSA Y TERMICA Color Termica Visible Infrarojo térmica Radiación Luz Luz Transmision % % % BTUH/pie2 Bronce 65 51 19 128 ESPECIFICACIONES TECNICAS DE CRISTALES LAMINADOS AGP PLANTA PERFIL VERTICAL TIPO C LAMINA METALICA ESTRUCTURAL VIGAS DE APOYO PARA ESTRUCTURA METALICA E=1" COLUMNA 50cm x 40cm < 4" X 4" X 3/8" VIGA TIPO C 20cm x 30cm VER DETALLE

Language	Spanish
Drawing Type	Detail
Category	Doors & Windows

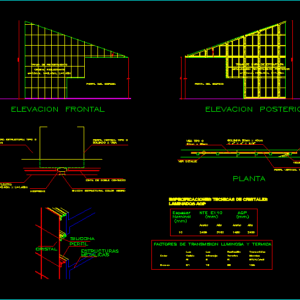

Additional Screenshots
File Type	dwg
Materials	Glass, Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, DETAIL, details, DWG, finish, glass, wall
