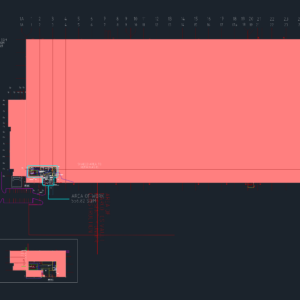

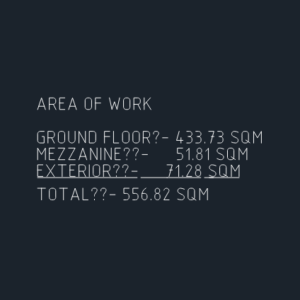

Industrial floor plans for a specialized warehouse renovation incl. a narcotics vault expansion & mezzanine. Covers roughly 556 sqm total area with ground floor & mezzanine layouts. Shows specific zones like the quarantine cage, shipping and receiving, & several office spaces. Includes notes for security requirements regarding controlled substances and racking specs for Redirack or Konstant systems. Also has ramp details, security fencing, & existing vs new wall phases.
Warehouse floor plan featuring a narcotics vault expansion
