Windows At Inclined Roofs – Velux 1014 DWG Block for AutoCAD

Windows At Inclined Roofs – Velux 1014 DWG Block for AutoCAD

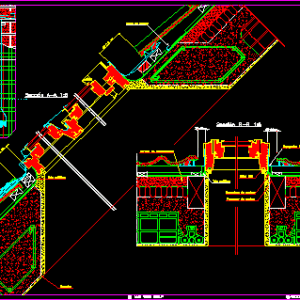

Window GGL GILwith concrete tile over batten

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cement tiles, mortar regularization, flashing edw bib, plaster, asphalt cloth, drainage channel, velux ies a registered trademark, anchoring subframe, anchoring brackets, red line, flashing edw channel side, tiles, cement, etw, edw, gil, ggl

Raw text data extracted from CAD file:

30-60mm 30-60mm 60-150 mm 60-80 mm 30-60mm / Seccion A-A 1:5 Tejas de cemento Mortero de regularizacion Tapajuntas EDW babero 1:25 5 / A A Enlucido 1996 VELUX GROUP C / Tela asfaltica Mortero de regularizacion / V-E 3-217.5.53/14.11.96 A B B A 5 Canal de drenaje VELUX ies una marca registrada R 10.14 11.96 30-60mm Premarco de anclaje Escuadras de anclaje Linea roja Tela asfaltica / Seccion B-B 1:5 / Tapajuntas EDW canal lateral Tejas de cemento ETW EDW GIL GGL \A1;30-60mm \A1;30-60mm

Language	Spanish
Drawing Type	Block
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Concrete, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, block, concrete, DWG, inclined, roofs, tile, window, windows
