Wooden Window DWG Plan for AutoCAD

Wooden Window DWG Plan for AutoCAD

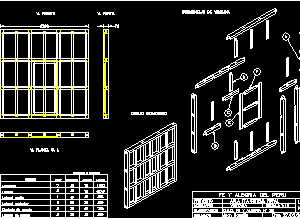

Plane and isometric view window with protection – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

window disassembly, v. profile, isometric drawing, v. front, v. plants. i., lateral protector, window, juan maguiña, classroom fya rural system, side door, faith and joy of Peru, furniture, drawing, elaboration, project, side door, lam., function, lateral, cod, largeros, lateral, thickness, cant, width, length, dimensions in millimeters

Raw text data extracted from CAD file:

1200 1200 70 DESMONTAJE DE VENTANA V. PERFIL DIBUJO ISOMETRICO E F A B D C V. FRENTE V. PLANTA S. I. Lateral protector VENTANA Juan Maguiña AULA FYA SISTEMA RURAL Lateral de puerta C.E.O. FE Y ALEGRIA Nº 25 FE Y ALEGRIA DEL PERU MOBILIARIO DIBUJADO ELABORACION PROYECTO F E Costado de puerta N° 10 ESCALA 1:16 Lima, 27/05/2003 23 23 3 2 LAM. 45 45 360 745 FUNCION Lateral medio A COD D C B Largeros Lateral 45 ESPESOR 45 30 45 2 9 1 7 CANT 70 30 47 70 ANCHO 407.5 385 385 1200 LARGO DIMENSIONES EN MILIMETROS 1200 1200 70

Language	Spanish
Drawing Type	Plan
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, details, DWG, isometric, plan, plane, protection, View, window, wooden
