Zapata With Metal Pilar DWG Block for AutoCAD

Zapata With Metal Pilar DWG Block for AutoCAD

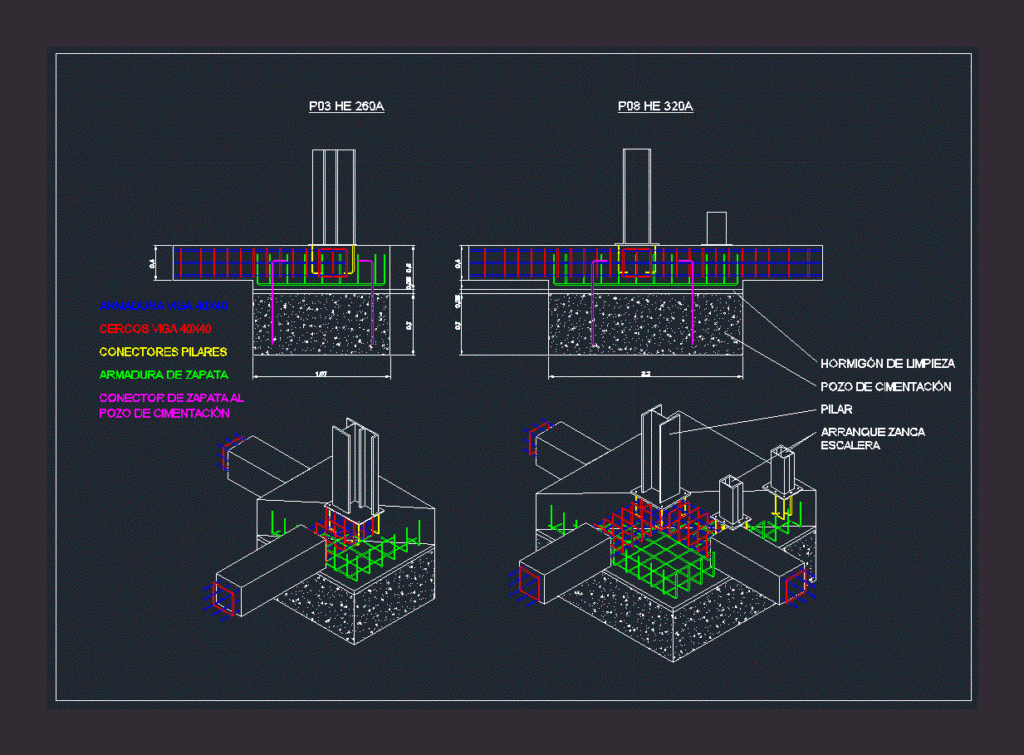

Eccentric and centered Zapata qwith metal pilar and start stair

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

armor beam, beam enclosures, pillar connectors, shoe armor, ladder start lever, pillar, cleaning concrete, foundation pit, shoe connector to foundation well

Raw text data extracted from CAD file:

0,7 0,5 1,57 0,4 0,7 0,4 2,2 P08 HE 320A P03 HE 260A ARMADURA VIGA 40X40 CERCOS VIGA 40X40 CONECTORES PILARES ARMADURA DE ZAPATA ARRANQUE ZANCA ESCALERA PILAR HORMIGÓN DE LIMPIEZA POZO DE CIMENTACIÓN CONECTOR DE ZAPATA AL POZO DE CIMENTACIÓN 5 5 5 5 5 5 0,05 0,05 5

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, block, centered, DWG, eccentric, FOUNDATION, foundations, fundament, metal, pilar, shoe, stair, start, zapata
