Zero Slab Dipac DWG Block for AutoCAD

Zero Slab Dipac DWG Block for AutoCAD

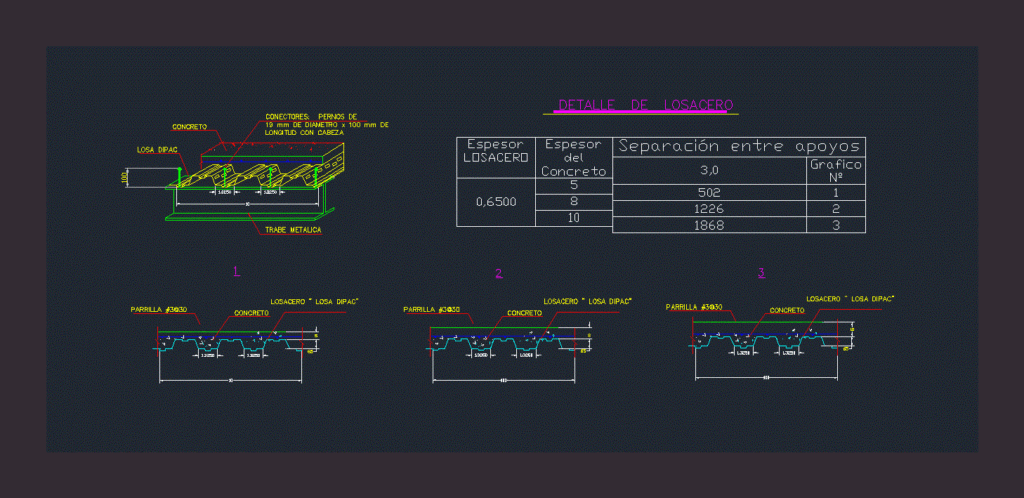

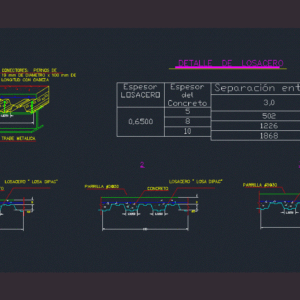

Dipac slab of concrete height 10 cm and length between supports 3m

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Thickness, thickness of concrete, separation between supports, graphic nº, detail of losacero, lock metal, concrete, Dipac slab, mm diameter mm, connectors:, head length, grill, the floor tile, concrete, grill, the floor tile, concrete, grill, the floor tile, concrete

Raw text data extracted from CAD file:

\A1;100 \A1;1.3250 \A1;10 \A1;1.3250 \A1;65 \A1;5 \A1;65 \A1;65 \A1; 8 \A1;10 Espesor LOSACERO Espesor del Concreto 0,6500 5 8 10 Separación entre apoyos 3,0 Grafico Nº 502 1 1226 2 1868 3 DETALLE DE LOSACERO TRABE METALICA 100 5 5 10 CONCRETO LOSA DIPAC 19 mm DE DIAMETRO x 100 mm DE CONECTORES: PERNOS DE LONGITUD CON CABEZA \A1;1.3250 \A1;1.3250 \A1;10 65 5 PARRILLA #3@30 LOSACERO " LOSA DIPAC" CONCRETO \A1;1.3250 \A1;1.3250 \A1;100 65 PARRILLA #3@30 LOSACERO " LOSA DIPAC" CONCRETO \A1;1.3250 \A1;1.3250 \A1;100 65 PARRILLA #3@30 LOSACERO " LOSA DIPAC" CONCRETO 8 10 1 \C6;2 \C6;3

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	alveoplaca, autocad, block, cm, concrete, DWG, height, leichte struktur, length, lightweight structure, slab, supports
