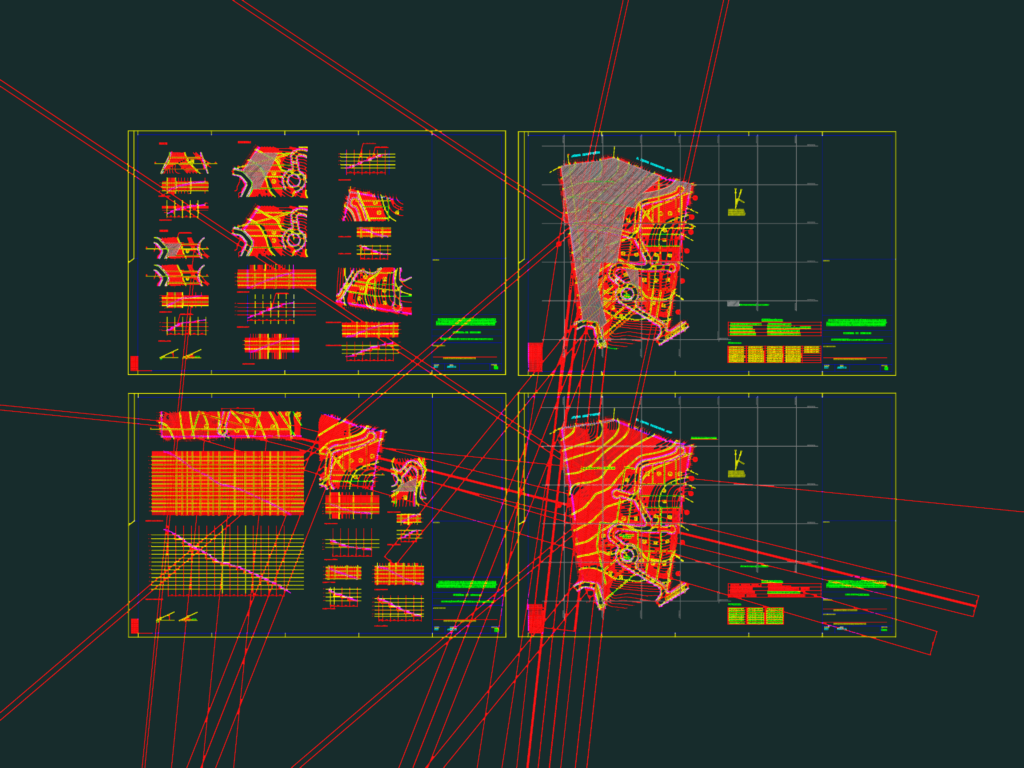

27,428 m2 Residential Subdivision Layout Plan

Technical site plan of a 31-lot residential subdivision with topographic contours and area calculation tables.

Residential subdivision plan for a 27,428.35 m2 site. Includes topo contours at 1m intervals, street profiles, and area schedules for 31 individual lots.

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
Portuguese
Materials
N/A
Units
Metric
Area
Over 5000 m² (53819.5 ft²)
Uploaded by
Lina CAD
Category
City Plans, Public Facilities
Published
Aug 29, 2026
Price $3.87
or

or get unlimited access from $7/mo

Tags

civil engineering contour lines loteamento plot layout road profile site plan subdivision topography urban planning
