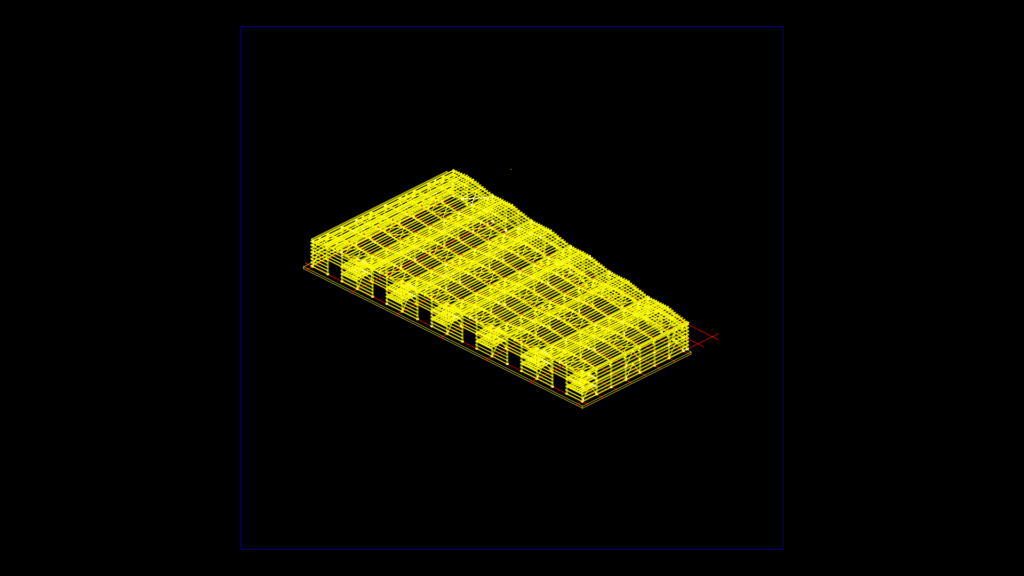

Comprehensive steel structure framing model for an industrial facility with regular bay spacing and integrated grid system. The structure features a low-pitch gable roof supported by a series of parallel moment frames. Multiple access points are visible along the longitudinal facade,, basically, providing strategic entry for equipment and material flow.
Key Structural Components:
– Primary steel frame with consistent column spacing at grid intersections
– Roof truss system with lateral bracing elements
– Multiple bay configuration with approximately 10 vertical supports per side
– Standard entrance openings at grade level
The framing system utilizes bolt connections at critical joints as indicated by the dedicated bolt layer in the model. The structure appears designed for optimal clear span interior space, typical of manufacturing or warehouse applications. The grid system (referenced in S-GRID layer) provides coordinate references for construction alignment and component placement.
