54x18x8m Industrial Steel Hangar with Monorail crane System

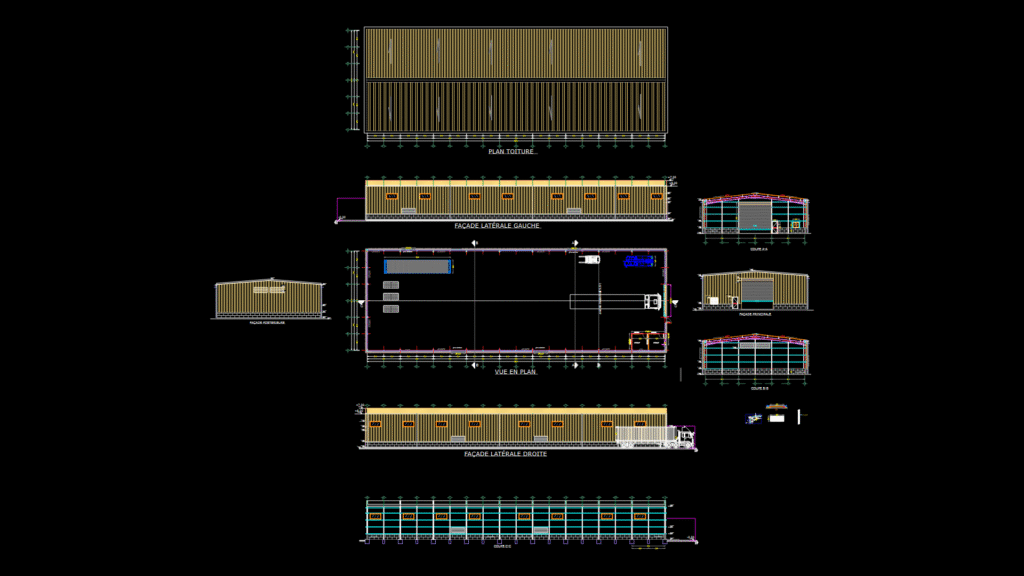

This drawing package depicts a comprehensive industrial hangar structure measuring 54m x 18m with a height of 8m. The facility features sandwich panel construction with TL75 roof panels and LL40 wall panels supported by a steel frame system utilizing IPE profiles (IPE100, IPE240, IPE400). The structure includes a 5.5-ton monorail crane system mounted at approximately 7m elevation, running along the primary axis of the building. The foundation consists of 1m high concrete block base (parpaing) with 15cm masonry walls above. Ventilation is provided through strategically placed louvers/grilles (labeled ‘grille aération’). The building incorporates a small office area with aluminum windows and doors (575x560mm windows and 100/220 doors). The roof has a minimal 1% slope for drainage with integrated gutter systems and 150mm diameter downspouts. The drawing set includes plan views, elevations (façade latérale droite/gauche, façade principale, façade posterieure), sections (Coupe A-A, B-B, C-C), and a roof plan showing the complete structural and envelope systems.
