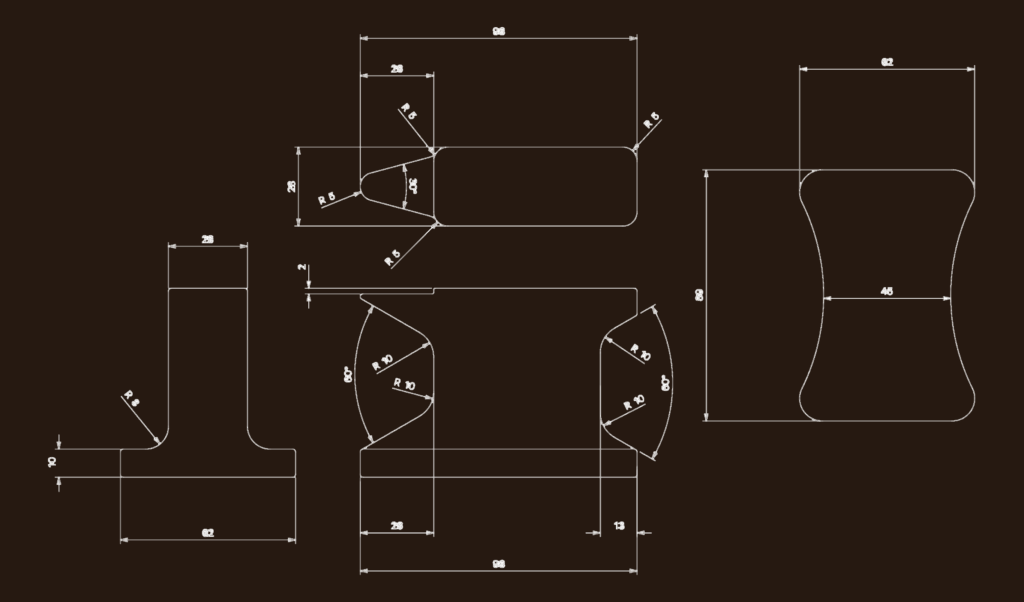

Mechanical anvil component detail with full orthographic views, incl. top plan, front elevation, and side profile. Dimensioning covers all critical points such as the 98 unit overall length and the 62 unit wide base flange. The horn section features a 30° taper with R5 fillets at the tip and transitions. I’ve noted the side cutouts are defined by 60° angles with R10 curvature for ergonomic handling or mounting. Base thickness is standardized at 10 units thk. across the assembly.we’ve included all necessary radii callouts (R5, R8, R10) to ensure accurate machining or casting.
Metalworking Anvil DWG with Orthographic Views
