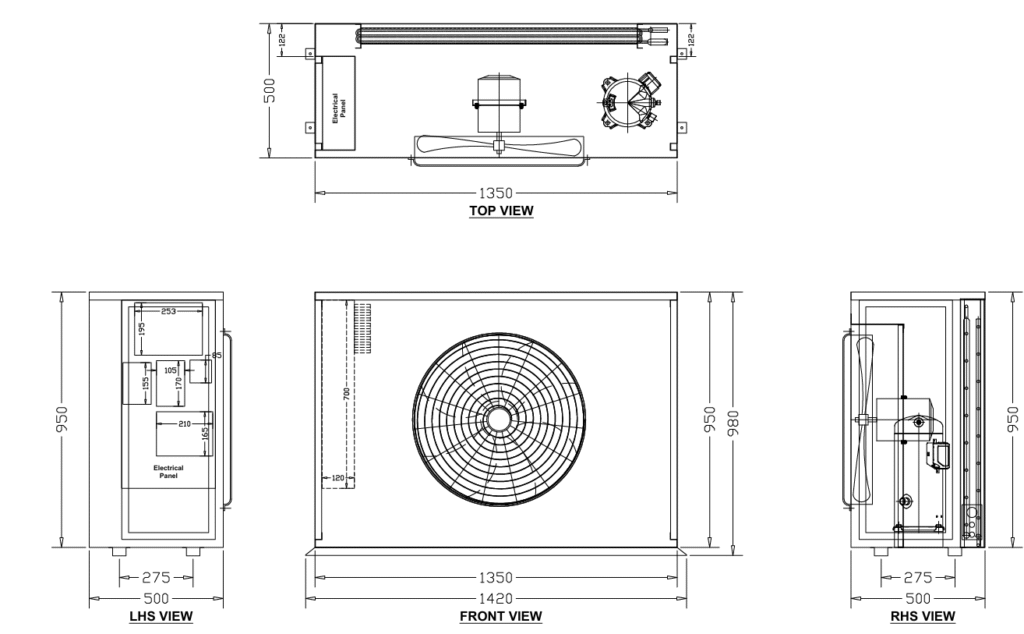

2D general arrangement drawing (GAD) of a 5TR (5 Tonne Refrigeration) air-cooled condensing unit. The technical file includes four dimensioned elevations: front view, top view, left-hand side view, and right-hand side view. Visible components include the axial fan with guard, internal electrical panel, condenser coils, and compressor housing.
The unit measures 1420mm in length at the base, 950mm in height, and 500mm in depth. All dimensions are provided in millimeters, including mounting hole spacings and internal component clearances. This drawing is used for mechanical plant room layouts, rooftop equipment placement plans, and HVAC system coordination.
