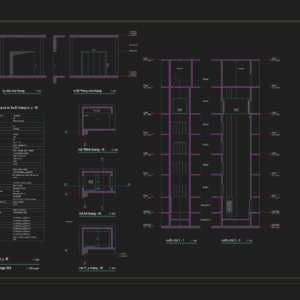

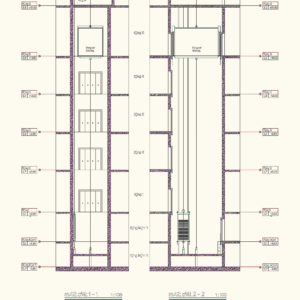

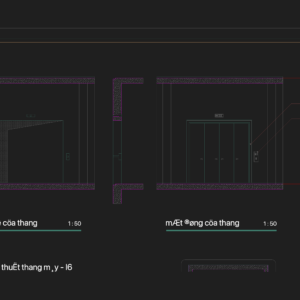

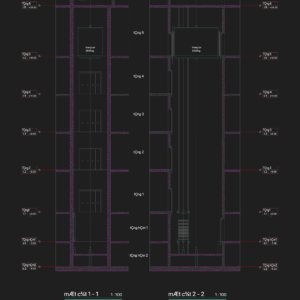

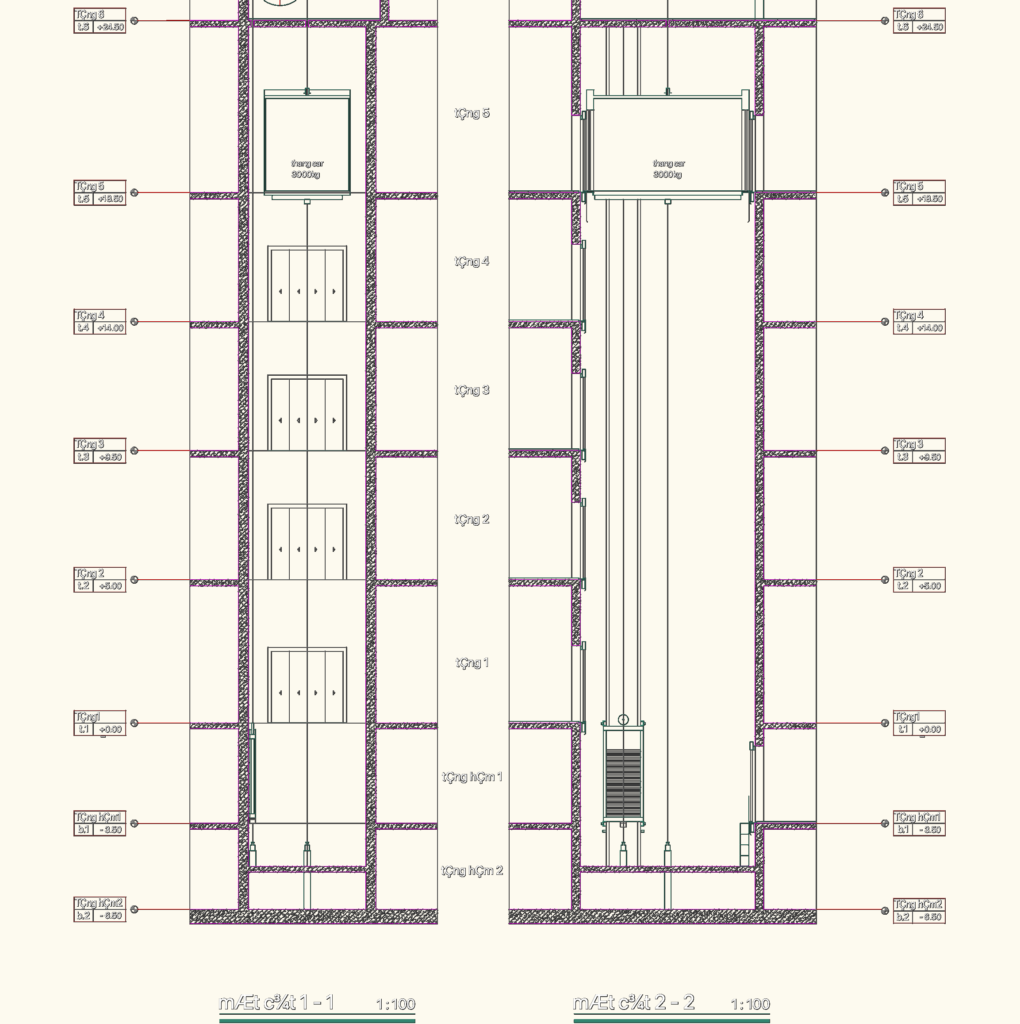

Full elevator installation details for a high-capacity 3000kg passenger lift. Includes long sections (1-1 & 2-2) showing the car assembly, counterweights, & floor levels from B2 up to the 7th floor. I’ve also included plan views for the shaft pit, machine room, and typical floor lobby. There’s a technical spec table covering the 1.0 m/s speed, ACVVVF drive, & 380V power reqs. Also shows door frame details, openings, and call button layouts. Materials listed incl. stainless steel (inox) for panels & aluminum sills. Everything is in metric with clear elevations etc. Chi tiết kỹ thuật thang máy tải trọng 3000kg.
7-story passenger lift details with shaft sections and specs
