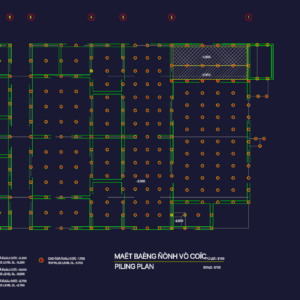

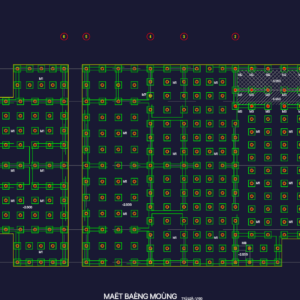

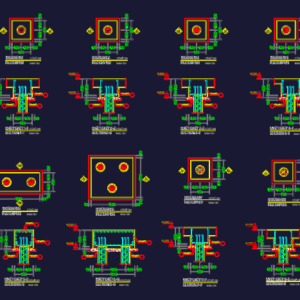

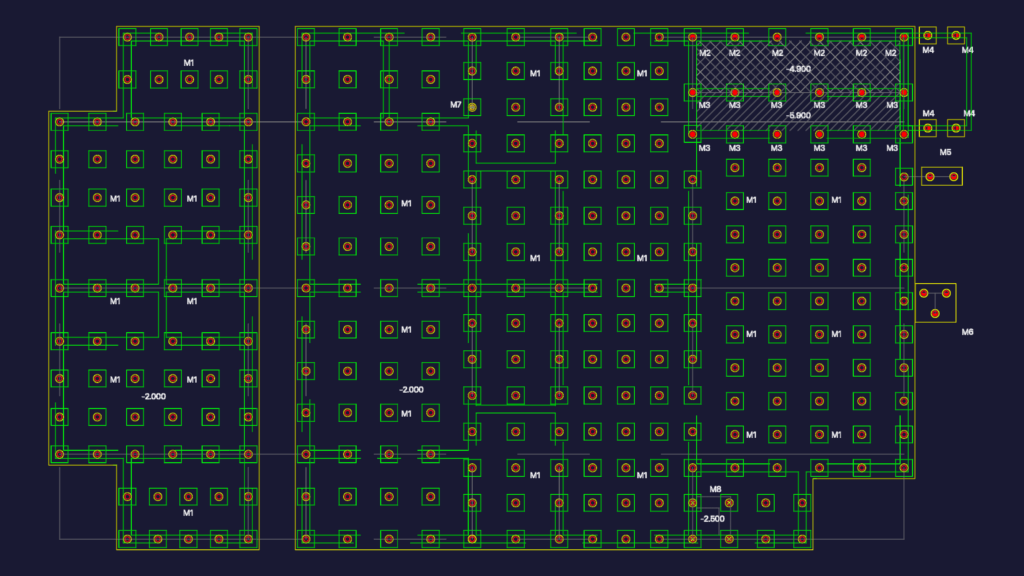

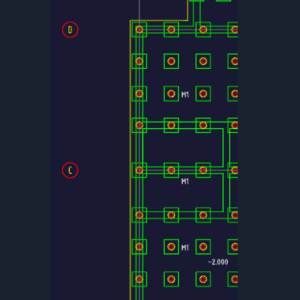

This drawing is for the structural piling plan of a waste water treatment system, featuring a layout for 311 piles and pile cap sections from M1 through M8. Layout includes various top pile levels and section details, could be useful in structural design and foundation engineering.
Piling Foundation Layout and Pile Cap Details for Waste Water Treatment System
