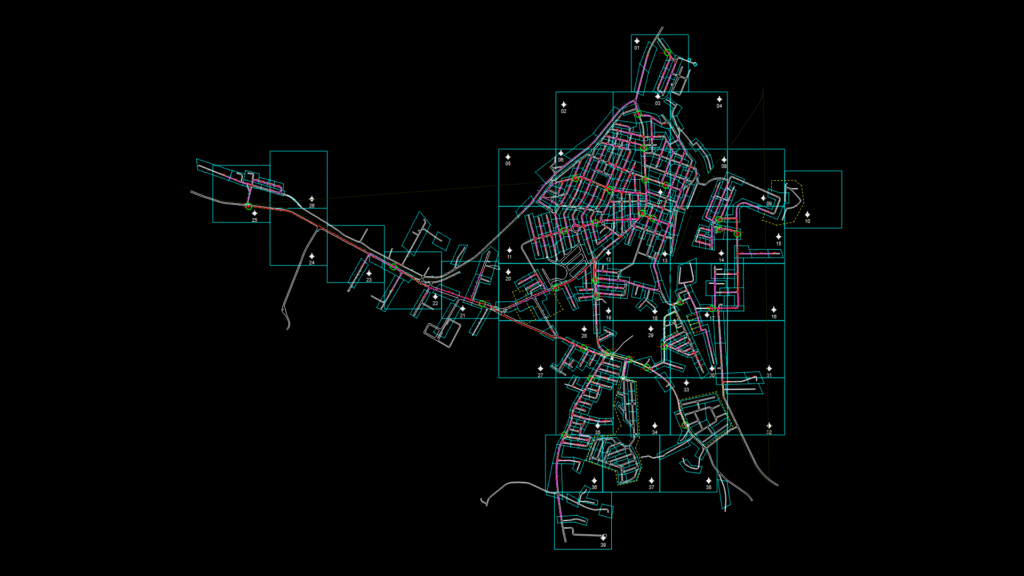

Comprehensive fiber-to-the-home (FTTH) network deployment plan for Iperó municipality featuring detailed utility pole mapping and fiber optic cable routing. The plan documents existing infrastructure components including:
Infrastructure Elements:
– 390+ numbered utility poles (P0001-P0390) with detailed specifications (height/material/condition)
– Fiber optic cable routes (12 FO, 72 FO) with precise pathway mapping
– Splicing points and technical reserves
– Existing telecommunications equipment locations
– Aerial cable suspension systems using messenger wire/cordoalha
Technical Specifications:
– Primary fiber backbone utilizing 72 FO trunk cables
– Distribution network using 12 FO cables
– Various pole types (9/200 to 14/1500) with occupancy notations
– Strategic splice enclosure placements at distribution nodes
– Railway and roadway crossings with special installation requirements
The design accommodates existing utility pole sharing with other providers (Vivo, NET) while documenting available attachment points for new fiber deployment. Plan includes technical reserves for future expansion and maintenance access.
