Accessible Roof Concrete Block DWG Detail for AutoCAD

Accessible Roof Concrete Block DWG Detail for AutoCAD

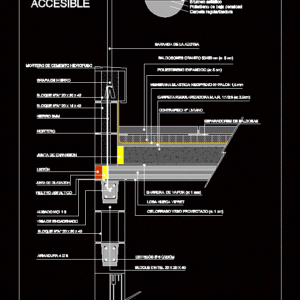

Construction detail of accessible roof (or inverted roof) made streamlined construction with concrete block and prestressed hollow slab.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

hollow slab vipret, projected plaster ceiling, lintel block, stirrups, armor, chained beam, smoothed mci, dilatation meeting, light subfloor, expanded polystyrene, granite countertops cm, vapor barrier, elastic membrane: mm, regularization folder m.a., tile separators, ribbon, roof railing, iron staple, mortar, asphalt felt, block, expansion meeting, cement mortar, block, iron, expanded polystyrene high density low density polyethylene asphalt bitumen high density polyethylene core bitumen bitumen low density polyethylene regularizer folder, roof terrace

Raw text data extracted from CAD file:

LOSA HUECA VIPRET CIELORRASO YESO PROYECTADO (e: 1 cm) BLOQUE DINTEL 20 X 20 X 40 ESTRIBOS d 6 C/20CM ARMADURA 4 d 8 VIGA DE ENCADENADO ALISADO MCI 1:3 JUNTA DE DILATACION CONTRAPISO H° LIVIANO POLIESTIRENO EXPANDIDO (e: 5 cm) BALDOSONES GRANITO 50X50 cm (e: 5 cm) BARRERA DE VAPOR (e: 1 mm) MEMBRANA ELASTICA: NEOPRENO-HYPALON 1,5 mm CARPETA REGULARIZADORA M.A.R. 1:1/2:3 (e: 2.5cm) SEPARADORES DE BALDOSAS LISTÓN BARANDA DE LA AZOTEA GRAPA DE HIERRO MORTERO FIELTRO ASFALTICO BLOQUE H°A° 20 x 20 x 40 BLOQUE H°A° 20 x 15 x 40 JUNTA DE EXPANSION MORTERO DE CEMENTO HIDROFUGO BLOQUE H°A° 20 x 20 x 40 HIERRO 8MM Poliestireno expandido alta densidad Polietileno de baja densidad Bitumen asfáltico Alma de polietileno de alta densidad Bitumen asfáltico Polietileno de baja densidad Carpeta regularizadora AZOTEA ACCESIBLE

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	accessible, accessible roof, autocad, barn, block, concrete, concrete block, construction, cover, dach, DETAIL, DWG, hangar, inverted, lagerschuppen, prestressed, roof, shed, structure, terrasse, toit
