Acoustic Insulation Details DWG Detail for AutoCAD

Acoustic Insulation Details DWG Detail for AutoCAD

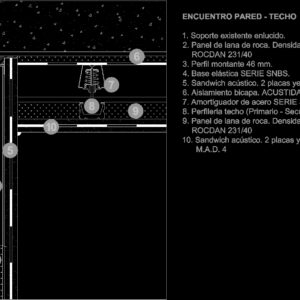

Detail External Bricks Wall and plaster panels in interior – Roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Meeting wall ceiling support existing plaster. Panel of rock wool. Density rocdan profile uprights mm. Elastic base series snbs. Acoustic sandwich. Gypsum plasterboards m.a.d. Two-layer insulation. Accused steel shock absorber series sntm snhm. Roof tile panel of rock wool. Density rocdan sandwich acoustic. Gypsum plasterboards m.a.d.

Raw text data extracted from CAD file:

ENCUENTRO PARED - TECHO 1. Soporte existente enlucido. 2. Panel de lana de roca. Densidad 70 kg/m 3 . ROCDAN 231/40 3. Perfil montante 46 mm. 4. Base elástica SERIE SNBS. 5. Sandwich acústico. 2 placas yeso laminar 13 + M.A.D. 4 6. Aislamiento bicapa. ACUSTIDAN 7. Amortiguador de acero SERIE SNTM o SNHM. 8. Perfileria techo (Primario - Secundario). 9. Panel de lana de roca. Densidad 70 kg/m 3 . ROCDAN 231/40 10. Sandwich acústico. 2 placas yeso laminar 13 + M.A.D. 4

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features
Tags	acoustic, acoustic detail, akustische detail, autocad, bricks, DETAIL, details, details acoustiques, detalhe da acustica, DWG, external, insulation, interior, isolamento de ruido, isolation acoustique, noise insulation, panels, plaster, roof, schallschutz, wall
