Alucobond Section Facade DWG Section for AutoCAD

Alucobond Section Facade DWG Section for AutoCAD

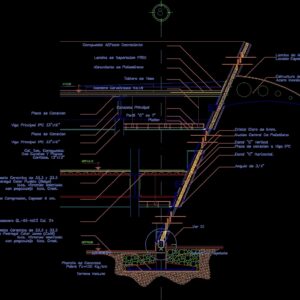

Alucobond Section facade

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

decreasing acfoam compound, separation sheet, polystyrene insulation, gypsum board, galvanized wire, main gutter, profile of, plafon, connection plate, main beam ipc, connection plate, main beam ipc, cabbage. sec. composed:, two channels plates, alucobond sheet, lacquered thickness mm., structure of, clear crystal of, polyethylene core, vertical channel, connection plate ipc beam, horizontal channel., angle of, ceramic tile, concrete template, natural terrain, line pedregal color puebla, mca settled vitromex, with pegazulejo mca. crest, layer thickness cm., lime steel system, poor, tepetate filling, stainless steel, ceramic tile, jagged color line jame, mca settled vitromex, with pegazulejo mca. crest, see

Raw text data extracted from CAD file:

A Compuesto ACFoam Decreciente 8' Lamina de Separacion FR50 Aislamiento de Poliestireno Tablero de Yeso Alambre Galvanizado No.18 Canaleta Principal Perfil "C" de ¾" Plafon Placa de Conexion Viga Principal IPC 33"x16" Placa de Conexion Viga Principal IPC 33"x16" Col. Sec. Compuesta: Dos Canales Y Placas Corridas, 12"x12" Lamina de Alucobond Lacado Espesor 6 mm. Estructura de Cristal Claro de 6mm. Nucleo Central De Polietileno Canal "C" Vertical Placa de conexion a Viga IPC Canal "C" Horizontal. Angulo de 3/4" Loseta Ceramica de 33.3 x 33.3 ø#6@25Cm Plantilla de Concreto Terreno Natural Linea Pedregal Color Puebla (Beige) Mca. Vitromex asentada con pegazulejo Mca. Crest. Capa de Compresion, Espesor 6 cm. Sistema Losacero QL-99-M62 Cal. 24 Pobre f'c=100 Kg/cm Relleno de Tepetate Acero Inoxidable Loseta Ceramica de 33.3 x 33.3 Linea Pedregal Color Jame (Café) Mca. Vitromex asentada con pegazulejo Mca. Crest. NPT±0.00 NPT+5.10 N+9.20 Ver D1

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems

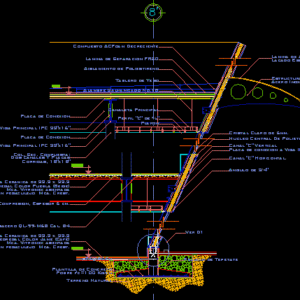

Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	alucobond, autocad, construction details section, cut construction details, DWG, facade, section
