Apartment Building Floor Plans

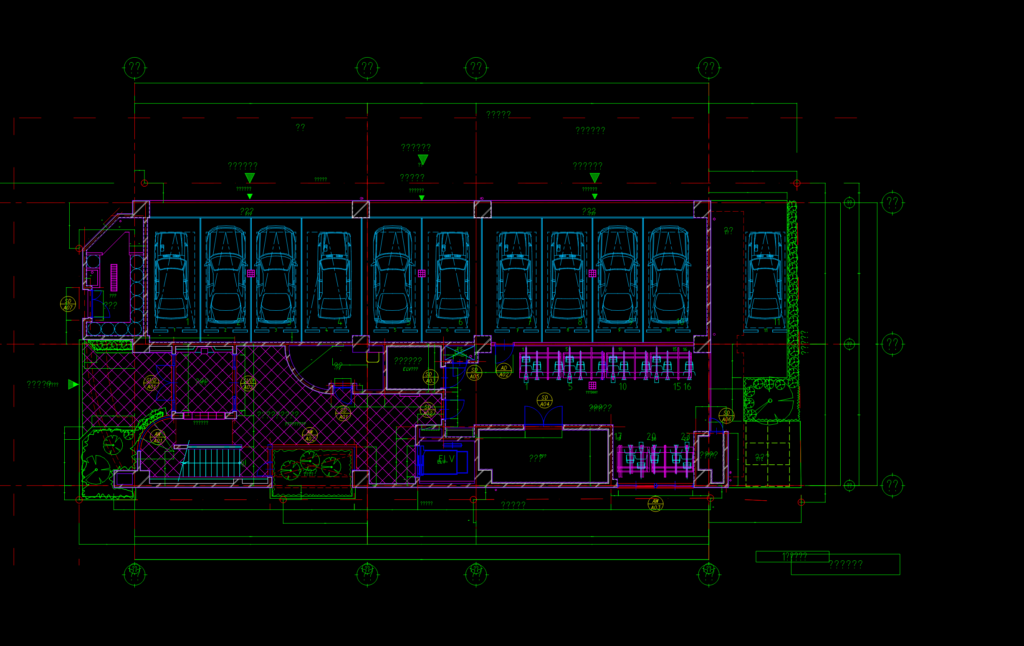

CAD floor plan of an apartment building layout with multiple residential units, elevator, and stairwell details.

Apartment building floor plans featturing GF parking for 11 vehicles and typical residential layouts. Includes site plan, typical floor plans, and roof details at 1:100 and 1:50 scales

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
Japanese
Materials
Concrete
Units
Metric
Area
500 – 999 m² (5382.0 – 10753.1 ft²)
Features
Elevator, Parking, Garden / Park
Uploaded by
Daniel
Category
Apartment, Residential
Published
Apr 27, 2026
Price $7.50
or

or get unlimited access from $7/mo

Tags

apartment building architecture Design floor plan housing project japan parking garage residential layout site plan
