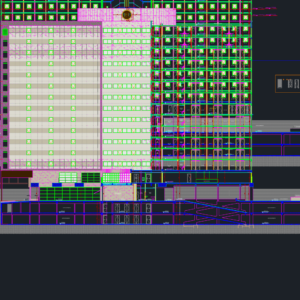

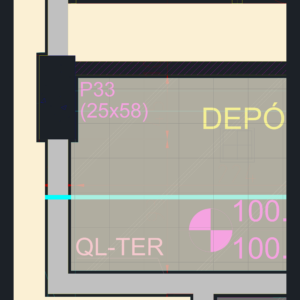

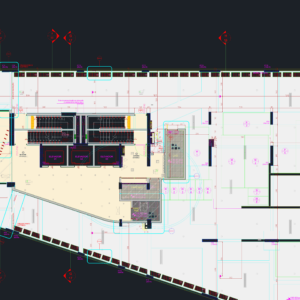

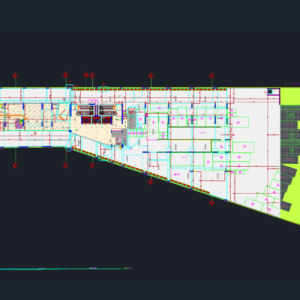

Ground floor architectural layout for a multi-story commercial building featuring complex vehicle access and technical infrastructure. Incluses detailed plan with entrance/exit ramps (slopes: i=4.21%, i=4.29%, i=6.10%) and sub-basement access ramp (i=20%). Full building elevation provided showing 1st/2nd sub-basements, Térreo, and upper floor levels with structural grids. Technical notes coer floor finishes: 1cm thk. porcelain, 12cm thk. slabs, and 3cm thk. cement floor. Plan includes social hall, 3 elevator cores, service depot, and PNE-compliant sanitary facilities. Landscaping areas marked with permeable paving and gardens over slabs. All levels noted in finished (ac.) and structural (os.) heights. – Térreo: ramp entry/exit, 3 elevators, social hall, trash/service. – Elevation: structural grids, sub-basements 1-2, levels 100.00 to 108.00+. – Materials: concrete slab, porcelain tile, hydro-tiles, masonry walls. Arquitetura pavimento térreo com rampas e elevação.
Architectural Ground Floor Plan with Vehicle Ramps and Elevation
