Asylum DWG Block for AutoCAD

Asylum DWG Block for AutoCAD

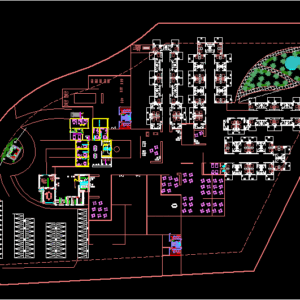

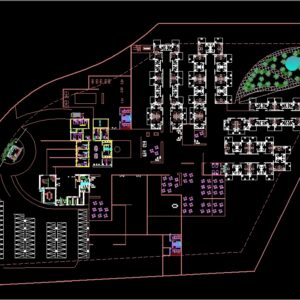

Nursing offers double, single, quad, also has workshops medical area is the capacity for 80 seniors. administration has parking

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

general direction, health, health h, health m, file, stationery, sai, accounting, administration, general, diagnosis, cardiology, geriatrics, nutrition, pharmacy, observation, nurses, control, green area, ambulance, women’s health, health men , showers, dressing room, machine room, filter, to drain

Raw text data extracted from CAD file:

DIRECCION GENERAL Sanitarios SANITARIOS H SANITARIOS M ARCHIVO PAPELERIA SAI CONTABILIDAD ADMINISTRACION General diagnostico Cardiologia Geriatria Nutrición FARMACIA observacion cuarto enfermeras control AREA VERDE ambulancia NPLAT+ Sanitarios mujeres Sanitarios hombres N.P.T. +0.20 Regaderas Vestidor Regaderas Vestidor 2,72 ,98 ,85 2,72 1,53 ,87 1,53 CUARTO DE MAQUINAS FILTRO A DRENAJE 5 5 5 5 5 5 5

Language	Spanish
Drawing Type	Block
Category	Hospital & Health Centres
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park, Parking
Tags	abrigo, area, asylum, autocad, block, capacity, double, DWG, geriatric, medical, nursing, residence, shelter, single, workshops
