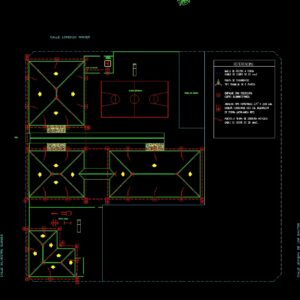

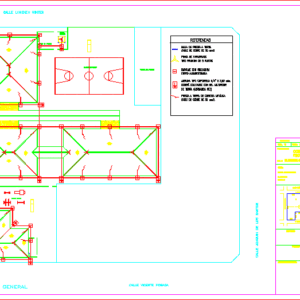

Atmospheric Discharge Of San Pedro Esc 2D DWG Plan for AutoCAD

Model in 2D plans of installation school lighting conductor

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

general plant, games sector, street wild guemes, scale, totem, calle vicente posada, joaquin de los santos street, reservation, tank, lorenzo winter street, service yard, sports playon, doorman’s housing, slab, grounding mesh, lightning rod tip, copper wire, joint with welding, javelin type coperweld mts., metallic cover ground, copper wire, references, should be placed with improver gel, of Earth, aluminothermal cupro, franklin tip type, technical direction, draft, municipal approval, builder, case file, method of execution:, Street:, plans of:, work:, scales:, owners:, circ., Location, letter, owner, use c.p.a.f., sup, ground, others, total, calculation, f.o.t .:, sup:, demolish, neighborhood:, surfaces, zone:, floor, low, second, first, plant, retirement:, floor, floor, sub, document., exist., build, f.o.s .:, document, exist., sup:, year, total, school number, wild guemes nº, san pedro, according to work, lic. publish number, vii, l. winter, wild guemes, v. Hostal, j. of the saints, secc .:, fraction, mz:, parc .:, general advice of Education, atmospheric discharge plant

Raw text data extracted from CAD file:

S O E N E N O S N PLANTA GENERAL SECTOR JUEGOS CALLE SILVESTRE GUEMES Escala 1:200 TOTEM CALLE VICENTE POSADA CALLE JOAQUIN DE LOS SANTOS RESERVA TANQUE CALLE LORENZO WINTER Patio de Servicio PLAYON DEPORTIVO VIVIENDA DEL PORTERO LOSA DE Hº Aº LOSA DE Hº Aº LOSA DE Hº Aº MALLA DE PUESTA A TIERRA PUNTA DE PARARRAYOS CABLE DE COBRE DE 50 mm2 EMPALME CON SOLDADURA JABALINA TIPO COPERWELD 3/4″ X 2,00 mts. PUESTA A TIERRA DE CUBIERTA METÁLICA CABLE DE COBRE DE 35 mm2. REFERENCIAS DEBERÁ COLOCARSE CON GEL MEJORADOR DE TIERRA (ACRILAMIDA RET) CUPRO ALUMINOTERMICA TIPO FRANKLIN DE 5 PUNTAS DIRECCION TECNICA PROYECTO APROBACION MUNICIPAL CONSTRUCTOR EXPEDIENTE FORMA DE EJECUCION: CALLE: PLANOS DE: OBRA: ESCALAS: PROPIETARIOS: CIRC. : UBICACION LETRA PROPIETARIO USO C.P.A.F. SUP TERRENO OTROS TOTAL CALCULO F.O.T.: 1.50 SUP: 7.650.00 DEMOLER BARRIO: SUPERFICIES ZONA: ZR3 PISO PISO BAJA SEGUNDO PRIMER PLANTA RETIRO: 3.00 PISO SUELO SUB DOCUMENT. EXIST. CONSTRUIR F.O.S.: 0.65 DOCUMEN. EXIST. A SUP: 3.315.00 A A AÑO TOTAL ESCUELA Nº 446 SILVESTRE GUEMES Nº 551 SAN PEDRO CONFORME A OBRA LIC. PUBLICA Nº 342/05 VII S 00 34 12 y 13 L. WINTER SILVESTRE GUEMES C B V. POSADA D 34 A 30.00 J. DE LOS SANTOS 90.00 SECC.: FRACC.: MZ.: PARC.: 1.966.99 5.100.00 70.00 00 SUB-PARC.: 1.966.99 60.00 30.00 CONSEJO GRAL. DE EDUCACION 40.00 70.00 90.00 30.00 1.966.99 468.60 PLANTA DE DESCARGA ATMOSFERICA 1:2000 – 1:200
