Auditorium DWG Block for AutoCAD

Auditorium DWG Block for AutoCAD

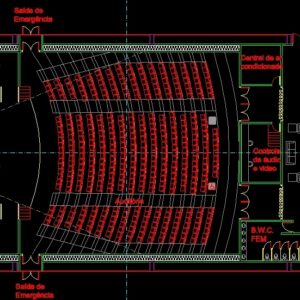

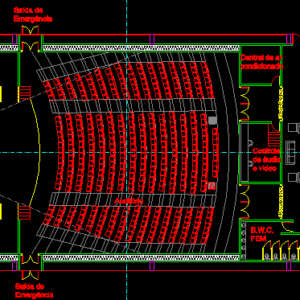

School Auditorium – with approx. 400 seats and the proper viewing angle in all seats – including people with disabilities – acoustic treatment on the walls and fire exit. 700m2 Stage with two dressing rooms backstage – a collective and an individual – four cabins and a storage room. Control Room and ar conditioning control system. Foyer and bathrooms for the general public.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

internal foyer, audio and video control, central air conditioning, b.w.c. fem, b.w.c. masc, stage, auditorium, aisle, collective dressing room, individual dressing room, b.w.c., b.w.c, depot, emergency exit, external foier

Raw text data extracted from CAD file:

Foyer Interno Controle de áudio e video Central de ar condicionado B.W.C. FEM B.W.C. MASC Palco Auditório Coxia Coxia Camarim Coletivo Camarim Individual B.W.C. B.W.C Depósito Saída de Emergência Saída de Emergência Foier Externo

Language	Portuguese
Drawing Type	Block
Category	Entertainment, Leisure & Sports
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	angle, Auditorium, autocad, block, cinema, dressing room, DWG, including, people, proper, school, SEATS, stage, Theater, theatre
