Balance window – Aluminium – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

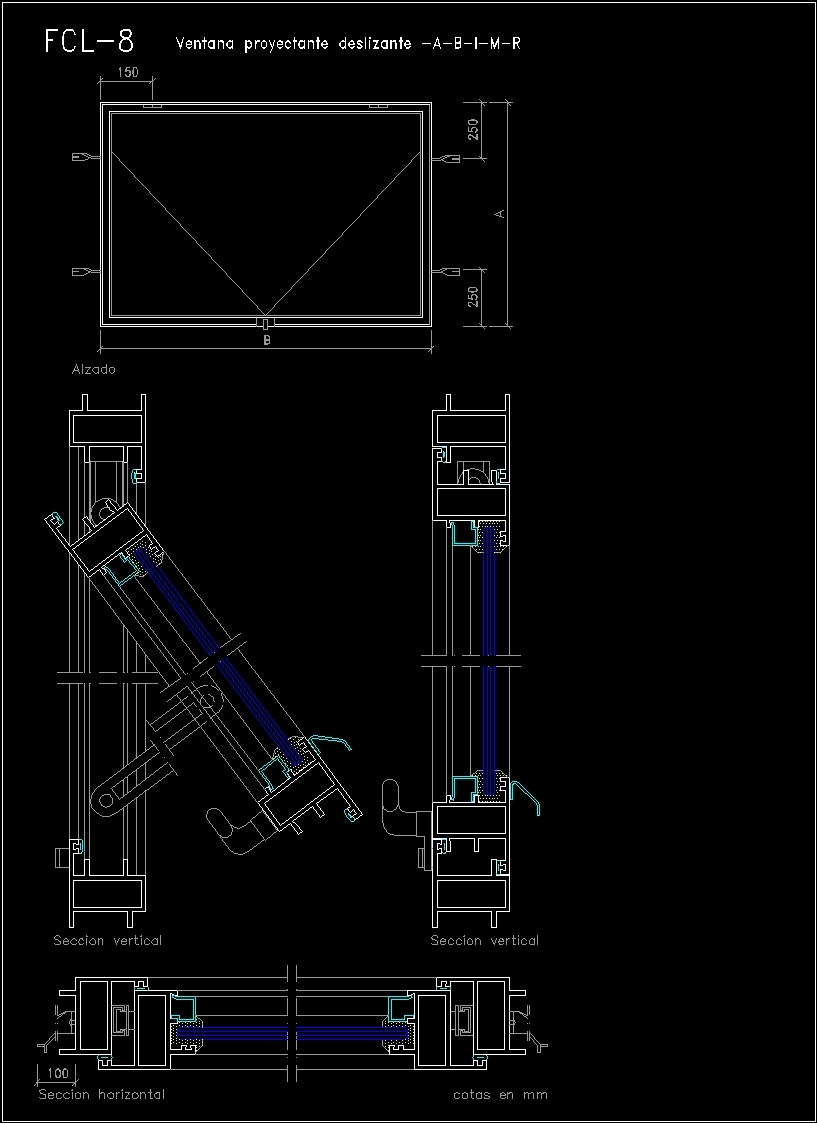

sliding projecting window -a-b-i-m-r, elevation, vertical section, dimensions in mm, horizontal section

Raw text data extracted from CAD file:

A 250 250 150 B 100 \A1;B \A1;150 \A1;A \A1;250 \A1;250 \A1;100 B 150 A 250 250 Ventana proyectante deslizante -A-B-I-M-R FCL-8 Alzado Seccion vertical cotas en mm Seccion horizontal Seccion vertical 100
