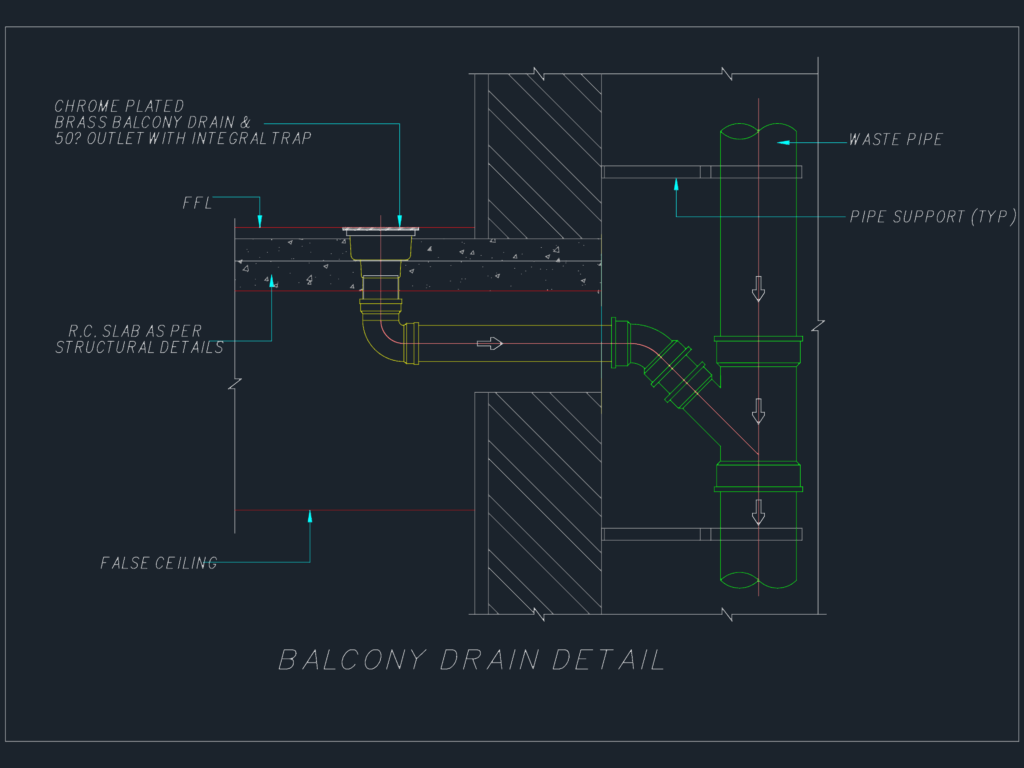

This drawing is for a balcony drain assembly showing a 50mm chrome-plated brass outlet and waste pipe connections through a reinforced concrete slab. The detail includes pipe supports and false ceiling clearance, which could be useful in residential plumbing designs.
Balcony Drain Installation Section Detail with Integral Trap
