Battery Pile Cap DWG Detail for AutoCAD

Battery Pile Cap DWG Detail for AutoCAD

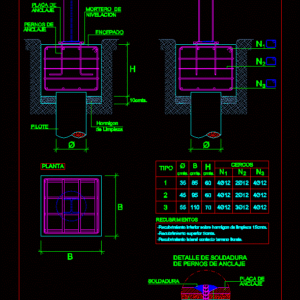

Detail of deep foundation

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

plant, section, kind, concrete, cleaning, section, cmts., fences, higher, coatings, lower on concrete cleaning, lateral ground contact, pile pile, the dimensions of the assembly are adapted to the regulatory requirements for calculation, pile cap, pile, metal pillar, anchorage, plate, leveling, mortar of, bolts, anchorage, of anchor bolts, leveling, welding, mortar, to receive the, welding, bevel in cone, anchorage, plate, welding detail

Raw text data extracted from CAD file:

B PLANTA 1 N SECCION 1 N N 2 1 2d12 60 4d12 85 35 1 TIPO d B N 3 4d12 60 45 2 70 55 3 2d12 4d12 4d12 3d12 4d12 4d12 95 110 10cmts. H Hormigon de Limpieza d d 3 N 2 N B SECCION 2 H cmts. cmts. cmts. CERCOS -Recubrimiento superior 5cmts. RECUBRIMIENTOS -Recubrimiento inferior sobre hormigon de limpieza 15cmts. -Recubrimiento lateral contacto terreno 8cmts. ENCEPADO DE 1 PILOTE \U+25BA LAS DIMENSIONES Y EL ARMADO SE ADAPTARAN A LAS SOLICITACIONES Y NORMATIVAS DE CALCULO CORRESPONDIENTES ENCEPADO PILOTE PILAR METALICO ANCLAJE PLACA DE NIVELACION MORTERO DE PERNOS DE ANCLAJE DE PERNOS DE ANCLAJE DE NIVELACION SOLDADURA MORTERO PARA RECIBIR LA SOLDADURA BISELAR EN CONO ANCLAJE PLACA DE DETALLE DE SOLDADURA

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, battery, calzaduras, cap, deep, DETAIL, DWG, footings, FOUNDATION, foundation details, foundations, fundament, pile, piles
