Beverage Processing Room 3D DWG Model for AutoCAD

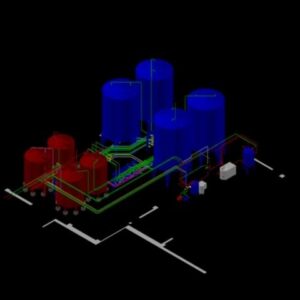

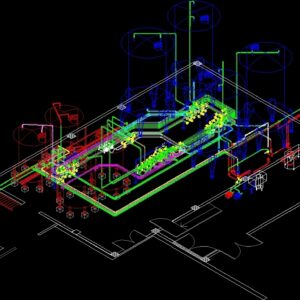

Living Beverage Processing, for bachts system, with full tanks, product lines, site cleaning, with all accessories (pumps, valves, etc.). Volumetric 3D.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

entrance to tank, of dissolutor of salts, of dissolutor of pectina, water of product, to lines, jmaf, simple syrup, slc from station cip

Raw text data extracted from CAD file:

INGRESO A TANQUE DE DISOLUTOR DE SALES DE DISOLUTOR DE PECTINA AGUA DE PRODUCTO A LINEAS JMAF JARABE SIMPLE SLC desde estación CIP SLC a tanque 10 SLC a tanque 11
