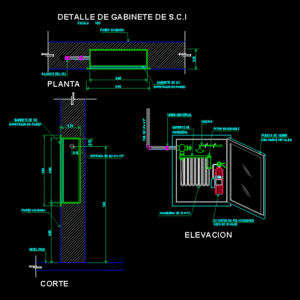

Cabinet Detail Fire System DWG Detail for AutoCAD

A Cabinet of fire fighting system is detailed; in which we can see the connections necessary for the installation of the Cabinet to fight a fire in buildings

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

your B. Sci, Universal union, With metal frame, glass door, scale, cut, elevation, plant, Finished wall, Downstream of the sci., Recessed wall, Sci cabinet, support of, hose, Python, Chemical powder extinguisher, Kilos dry, Hose of mts., Recessed wall, Finished wall, Sci cabinet, Entrance of sci, Floor level, ax, Cabinet detail of s.c.i, Www.consultoriasanitaria.com, Tel., av. Francisco de orellana a. Borges building centrum floor of., Po box:, Consulting firm. Ltda., Registration consultant:, professional register, Municipal registry, Ing. Feliciano gonzalez dumes

Raw text data extracted from CAD file:

0.80 0.20 0.80 0.85 1.60 0.20 0.10 \A1;0.10 \A1;0.85 \A1;0.80 TUB. SCI d1-1/2" 0.80 UNION UNIVERSAL CON MARCO METALICO PUERTA DE VIDRIO ESCALA 1:20 CORTE ELEVACION PLANTA 0.20 PARED ACABADA 0.80 0.85 BAJANTE DEL SCI. EMPOTRADO EN PARED GABINETE DE SCI SOPORTE DE MANGUERA PITON GRADUABLE EXTINTOR DE POLVO QUIMICO SECO DE 10 KILOS MANGUERA DE 15 MTS. 5 0.20 5 5 0.85 0.80 EMPOTRADO EN PARED PARED ACABADA GABINETE DE SCI ENTRADA DE SCI d1-1/2" NIVEL PISO HACHA DETALLE DE GABINETE DE S.C.I algonzal@gye.satnet.net felgonza@gye.satnet.net www.consultoriasanitaria.com Telf. (593)4-2693235-(593)4-2693236-Fax:(593)4-2693238 Av. Francisco de Orellana y A. Borges Edificio CENTRUM Piso 8 Of. 2 PO Box: 09062309 algonzal@consultoriasanitaria.com Consulambiente Cia. Ltda. REGISTRO CONSULTOR: # 1-3763-CIN REGISTRO PROFESIONAL # 09-523 REGISTRO MUNICIPAL # 02274 ING. FELICIANO GONZALEZ DUMES

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Glass
Measurement Units
Footprint Area
Building Features
Tags	autocad, cabinet, connections, DETAIL, detailed, DWG, einrichtungen, facilities, fighting, fire, gas, gesundheit, installation, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, system, wasser bestimmung, water
