Cabinets Fire DWG Block for AutoCAD

Cabinets Fire DWG Block for AutoCAD

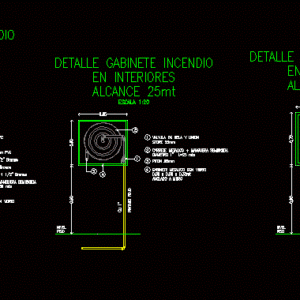

Extreme Fire Cabinets: – 1 1/2inch diameter semi-rigid hose reach 30mt – 1inch diameter semi-rigid hose reach 25 mt – 1inch diameter semi-rigid hose reach 30mt

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Painted red, Pvc, Tee hundred Pvc, Pvc, Pvc terminal, Bronze terminal, Bronze elbow, Bronze angle wrench, Semi-rigid metal hose reel, Diameter mts, Piton helyjet, Outdoors, scale, Detail fire cabinet, Metal cabinet with glass, Anchored wall, floor, level, floor, level, Painted red, Union ball valve, Storz, Semi-rigid metal hose reel, Diameter mts, piton, Metal cabinet with glass, Anchored wall, scope, scale, Indoors, Detail fire cabinet, scope, floor, level, Painted red, Union ball valve, Storz, Semi-rigid metal hose reel, Diameter mts, piton, Metal cabinet with glass, Anchored wall, scope, scale, Indoors, Detail fire cabinet

Raw text data extracted from CAD file:

1,00 0,80 0,90 0,60 0,65 0,90 0,90 0,70 0,70 PINTADO ROJO PVC 63 1 2 3 4 5 7 8 6 1 TEE CEM. 63x50mm PVC 2 PVC 50mm 3 TERMINAL CEM-HI 50mm PVC 4 TERMINAL SO-HEI 1 1/2" Bronce 5 CODO SO-SO 1 1/2" Bronce 6 LLAVE DE ANGULO 90º 1 1/2" Bronce 7 CARRETE METALICO + MANGUERA SEMIRIGIDA DIAMETRO 1 1/2" L=30 mts 8 PITON HELYJET 38mm EN EXTERIORES ESCALA 1:20 DETALLE GABINETE INCENDIO 9 9 GABINETE METALICO CON VIDRIO 1,00 x 0,80 x 0,52mt 5 5 ANCLADO A MURO 5 PISO NIVEL PISO NIVEL 5 5 PINTADO ROJO 3 1 2 4 5 Cu 1 1/2" Cu 1" 1 VALVULA DE BOLA Y UNION STORZ 25mm 2 CARRETE METALICO + MANGUERA SEMIRIGIDA DIAMETRO 1" L=25 mts 3 PITON 25mm 4 GABINETE METALICO CON VIDRIO 0,60 x 0,65 x 0,32mt ANCLADO A MURO ALCANCE 25mt ESCALA 1:20 EN INTERIORES DETALLE GABINETE INCENDIO ALCANCE 30mt PISO NIVEL PINTADO ROJO 3 1 2 4 5 Cu 1" 1 VALVULA DE BOLA Y UNION STORZ 25mm 2 CARRETE METALICO + MANGUERA SEMIRIGIDA DIAMETRO 1" L=30 mts 3 PITON 25mm 4 GABINETE METALICO CON VIDRIO 0,70 x 0,70 x 0,32mt ANCLADO A MURO 5 5 ALCANCE 30mt ESCALA 1:20 EN INTERIORES DETALLE GABINETE INCENDIO

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Glass
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, cabinet, cabinets, diameter, DWG, einrichtungen, extreme, facilities, fire, gas, gesundheit, hose, inch, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, mt, provision, wasser bestimmung, water
