Catalan Vault DWG Block for AutoCAD

Catalan Vault DWG Block for AutoCAD

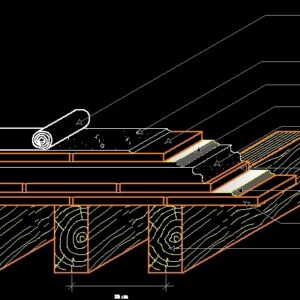

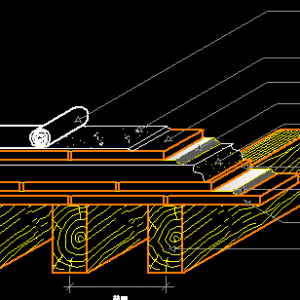

Parts that make up a Catalan vault, including the order in which each layer must be from the waterproofing to the wooden beams.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

of wood, of cement, half, of cement, tezontle, of cement, half

Raw text data extracted from CAD file:

\A1;2.5 cm \A1;10 cm \W6.99275; \A1;Vigas de madera pino-ocote \A1;20 cm \A1;28 cm \W8.45250; \A1;Escobillado de cemento (lechada) \W6.86598; \A1;Enladrillado (\A1;ladrillo media tabla\A1;) \W7.81039; \A1;Mortero de cemento \W7.09944; \A1;Relleno (compacto) tezontle \W7.81039; \A1;Mortero de cemento \W6.86598; \A1;Enladrillado (\A1;ladrillo media tabla\A1;) \W6.86598; \A1;Enladrillado (\A1;ladrillo media tabla\A1;) \A1;1.0 cm \A1;2.5 cm \A1;1.5 cm \A1;5.0 cm \A1;2.5 cm \A1;1.5 cm \W7.20411; \A1;Impermeabilizante

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, beams, block, catalan, détails de construction en bois, DWG, holz tür, holzbau details, including, layer, order, parts, vault, waterproofing, Wood, wood construction details, wooden, wooden door, wooden house
