Channel DWG Block for AutoCAD

Channel DWG Block for AutoCAD

Algebraic method Trapezoidal Canal – EFIC max. hydraulics

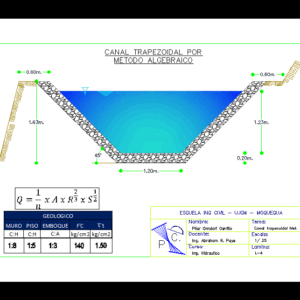

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

first name:, theme:, scale:, sheet:, teacher:, course:, Condor carrillo pillar, Ing. Abraham r. Paye, Ing. hydraulics, Civil engineering school ujcm moquegua, Trapezoidal channel met. Algeb., Trapezoid by

Raw text data extracted from CAD file:

TP WV H Y D O S W S D GV W D Y H D Nombre: Tema: Escala: Lamina: Docente: Curso: Pilar Condori Carrillo Ing. Abraham R. Paye Ing. Hidraulica ESCUELA ING CIVIL - UJCM - MOQUEGUA C. P 1.10 1.10 1.08 1.48 0.74 \A1;1.20m. \A1;1.23m. \A1;0.20m. \A1;1.63m. \A1;45° \A1;0.60m. \A1;0.60m. 1:8 1:5 1:3 140 1.50 5 5 5 5 45° 5 5 Canal trapezoidal Met. algeb. 1/ 25 L-4 \W2.71201; \LCANAL TRAPEZOIDAL POR
