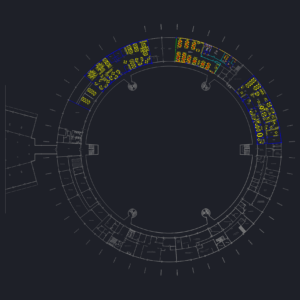

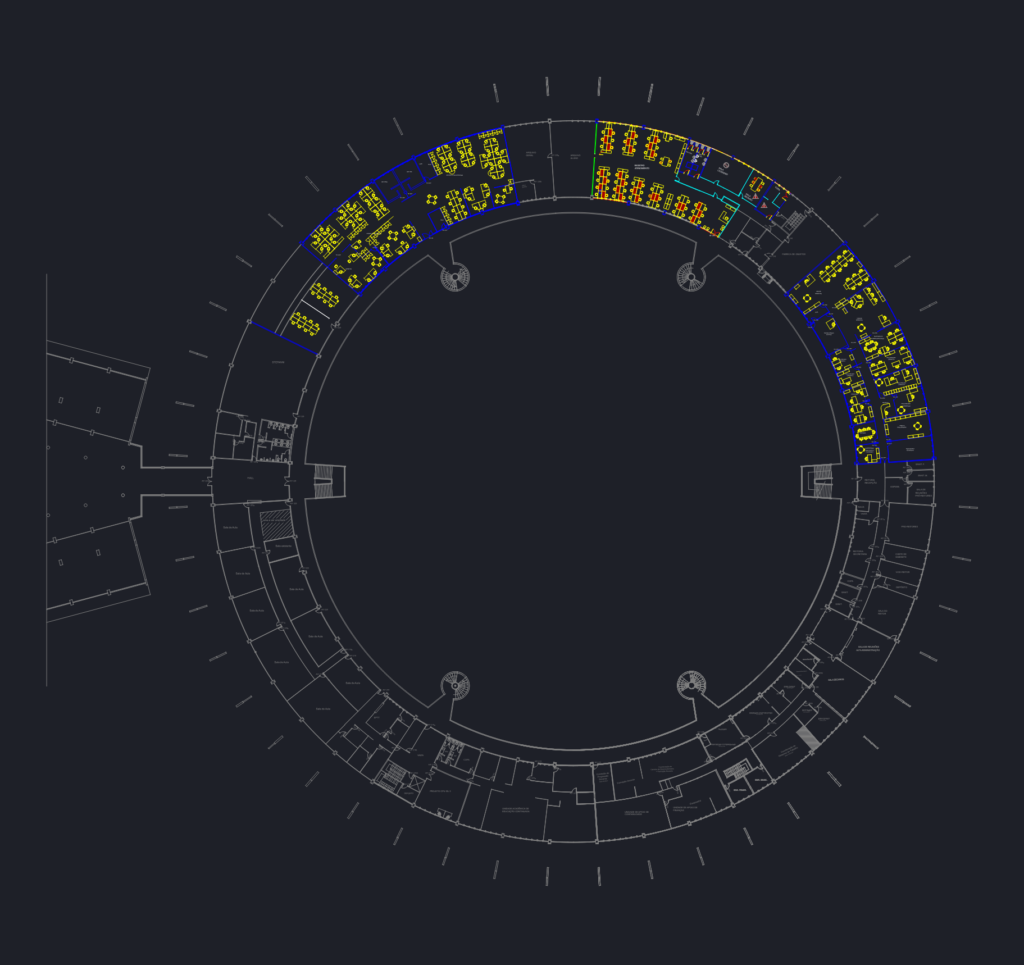

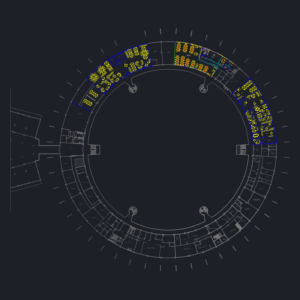

Floor plan for the second floor of a large circular community center, specifically the one at Unisinos university. It’s a pretty complex layout with rooms arranged around a big central void. Includes detailed wokrstations for the administrative wing—like the Rectory and Finance offices—plus various meeting rooms and classrooms. I’ve left the furniture blocks in for the offices, including desks, chairs, and cabinets. You also get the full bathroom layouts and some kitchen/copa details. Units are in mm. Planta baixa do segundo pavimento do Centro Comunitário.
Circular Community Center Second Floor Plan DWG
