Cistern DWG Block for AutoCAD

Cistern DWG Block for AutoCAD

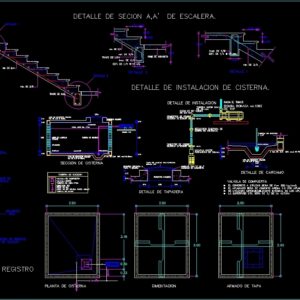

Structural design of cistern

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

staircase plant, var. of, var. of, detail, alloy fence, var. of, detail, est. of cm., detail of stairs section., detail, est. of cm., detail, est. of cm., var. of, alloy fence, var. of, firm concrete, block wall, cement block, poor, record detail, concrete, plntilla de, concrete, angle, wire, angle, frame of, thin, flattened, The useful surface will be of height, integral waterproofing in flattened., The flattened will be sand cement with fine flattening., The concrete to use will be, gate valve, bomb bonasa, carcamo detail, var. of, slab of reinforced concrete, fitted with lid, bomb, union nut, exit elbow down, connection tee, cold water pipe, Check valve, gate valve, suction pipe, section of cistern, slab of reinforced concrete, cistern plant, elbow of, var. of, flattened, scrub, brick wall, foundation, copper filmmaker, outer string of mm., cover detail, galvanized laminate cover, register man, var. of this, pichancha, suction pipe, solera cover, welded hinge, Check valve, pichancha de, drowned in concrete, angular type of, free water level, lid, float, var. of, slab of reinforced concrete, copper connector, outer string of mm., register man, installation detail, copper of, bell reduction of, nut union galv, elbow of copper, of mm., of mm, toward the tinaco, var. of this, pichancha, suction pipe, detail of cistern installation., constructive details, savasy, partial total reproduction, by the rights laws of, supplibre, stage, build sup, build sup, stage, assumed the ground., jalisco, dominguez, av. Revolution of, av. Aquiles will be, north location:, project data, the quotas govern on drawing., author valid the date, This project will be sanctioned, observations, plane of, sup build, scale:, date:, dimension:, mts., d.r.o., nayarit, oaxaca, pro av. belisario, av. fco. i. timber, drawing:, owner’s name:, colima

Raw text data extracted from CAD file:

0.20 PLANTA DE ESCALERA. A var. DE 3/4 A var. DE 3/8 DETALLE 1. TRABE DE LIGA var. DE 3/4 DETALLE 2 EST. DE 1/4 @ 15 cm. DETALLE DE SECION A,A' DE ESCALERA. 4var. DE 3/8 DETALLE 1 4var. DE 3/8 EST. DE 1/4 @ 15 cm. DETALLE 2. 0.40 0.20 EST. DE 1/4 @ 15 cm. 0.30 0.03 4var. DE 3/8 var. DE 3/8 TRABE DE LIGA var. DE 3/4 0.27 0.40 FIRME DE CONCRETO 0.162 0.025 0.025 0.162 0.03 14 15 16 6 9 10 11 12 13 N.P.T.+ 1.30 7 8 N.P.T.+ 1.30 1 2 3 4 5 muro de block muro de block BLOCK DE CEMENTO POBRE DETALLE DE REGISTRO CONCRETO PLNTILLA DE CONCRETO ANGULO ALAMBRON ANGULO MARCO DE FINO APLANADO DE 15x20x40 LA SUPERFICIE UTIL SERA DE 3/ DE LA ALTURA SE UTILIZARA IMPERMEABILIZANTE INTEGRAL EN LOS APLANADOS. EL APLANADO SERA DE CEMENTO ARENA 1:3 CON APLANADO FINO. EL CONCRETO A UTILIZAR SERA DE f'c= 200 kg/cm2. VALVULA DE COMPUERTA BOMBA BONASA no.1060 DETALLE DE CARCAMO var. DE 3/8 @ 30cm. LOSA DE CONCRETO ARMADO ARMADO DE TAPA BOMBA 1HP 2.50 TUERCA DE UNION CODO DE 90° SALIDA HACIA ABAJO CONEXION TEE TUBERIA DE AGUA FRIA VALVULA CHECK VALVULA DE COMPUERTA TUBERIA DE SUCCION SECCION DE CISTERNA LOSA DE CONCRETO ARMADO PLANTA DE CISTERNA CODO DE 90° var. DE 3/8 @ 30cm. pend.=2% APLANADO CHAFLAN 7x14x28 MURO DE LADRILLO 1.30 0.20 CIMENTACION 0.50 \A1;0.33 CINECTOR DE COBRE CUERDA EXTERIOR DE 25 mm. DETALLE DE TAPADERA TAPA DE LAMINA GALVANIZADA REGISTRO HOMBRE \A1;2.18 4 var. DE 3/8 EST. no.2 @ 30cm. PICHANCHA TUBERIA DE SUCCION 0.12 0.10 0.14 0.60 pend.= 2% TAPA Y SOLERA BISAGRA SOLDADA A 0.10 1.50 2.50 \A1;3.00 VALVULA CHECK PICHANCHA DE 38mm. 0.14 AHOGADO EN CONCRETO ANGULAR TIPO "L" DE 1" 0.12 0.10 0.10 NIVEL LIBRE DEL AGUA TAPA FLOTADOR var. DE 3/8 @ 30cm. LOSA DE CONCRETO ARMADO 0.12 0.20 CONECTOR DE COBRE CUERDA EXTERIOR DE 25 mm. REGISTRO HOMBRE 0.10 DETALLE DE INSTALACION COBRE DE 38x25mm. REDUCCION CAMPANA DE TUERCA UNION GALV. CODO DE 90° COBRE DE 25 mm. DE 25 mm HACIA EL TINACO DE 1HP 2.50 \A1;3.00 4 var. DE 3/8 EST. no.2 @ 30cm. 0.50 0.25 PICHANCHA 1 1/4" TUBERIA DE SUCCION DETALLE DE INSTALACION DE CISTERNA. DETALLES CONSTRUCTIVOS. SAVAJOJU LA REPRODUCCION TOTAL O PARCIAL POR LAS LEYES DE DERECHOS DE 231.00 m2 SUP.LIBRE. 2 ETAPA. SUP.A CONSTRUIR 167.23 m2. 167.23 m2. SUP.A CONSTRUIR 1 ETAPA. SUP.DEL TERRENO. 398.23 m2 JALISCO DOMINGUEZ AV. REVOLUCION DE 1910 AV. AQUILES SERDAN LOCALIZACION Y NORTE: DATOS DEL PROYECTO. LAS COTAS RIGEN SOBRE DIBUJO. AUTOR VIGENTES A LA FECHA DE ESTE PROYECTO SERA SANCIONADA OBSERVACIONES : PLANO DE : 334.46 m2. SUP. A CONSTRUIR 1: 50 ESCALA: FECHA: JULIO/2000 ACOTACION: MTS. D.R.O. NAYARIT OAXACA PROL. AV. BELISARIO AV. FCO. I. MADERO DIBUJO: NOMBRE DEL PROPIETARIO: COLIMA

Language	N/A
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, cistern, Design, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, structural, wasser bestimmung, water
