Cock Casket For DWG Detail for AutoCAD

Detail of water supply shut-off

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

Casket for passage key, Quotas in meters, Section plant, Series of mouths, Of irrigation, Anchorage of, Reinforced concrete, For key, Siege lid of, Foundry, Plastered, Fratasado, with, Manufactures of, Solid brick, Horigon, section, Connection to the network of, Channel distribution, Pieces, Anchor reel bb, Reel bb telescopic reel of disassembly, English type gate valve, Splice bl be, Pipeline, with, Sidewalk

Raw text data extracted from CAD file:

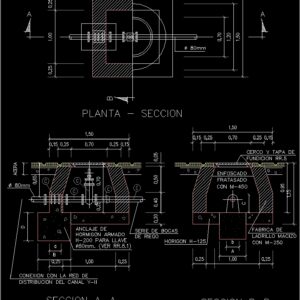

d 80mm ARQUETA PARA LLAVE DE PASO RR.4 Cotas en metros PLANTA - SECCION 0,05 d 80mm SERIE DE BOCAS DE RIEGO ANCLAJE DE HORMIGON ARMADO H-200 PARA LLAVE d80mm. (VER RR.8.1) CERCO Y TAPA DE FUNDICION RR.5 ENFOSCADO FRATASADO CON M-450 FABRICA DE LADRILLO MACIZO HORIGON H-125 SECCION A-A SECCION B-B CONEXION CON LA RED DE DISTRIBUCION DEL CANAL Y-II PIEZAS 1 - CARRETE DE ANCLAJE BB d 80mm. 2 - CARRETE BB d 80mm. O CARRETE TELESCOPICO DE DESMONTAJE d 80mm. 3 - VALVULA DE COMPUERTA TIPO INGLES d 80mm. 4 - EMPALME BL o BE d 80mm. 5 - TUBERIA d 80mm. A A B B CON M-250 0,20 0,40 0,50 1,50 1,20 0,70 1,50 0,15 0,15 0.25 0,70 0,25 a B 0,25 D ACERA 1 0,65 0,25 0,70 1,00 1 1 0,25 1 1 0,25 1,00 0,25 0,25 0.25 0,15 0,15 0,25 1,50 0,70 1,00 C A 0,25 b 1,15 0,25 0.95 1,50

Language	N/A
Drawing Type	Detail
Category	Bathroom, Plumbing & Pipe Fittings
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	a válvula, autocad, chest, clean, DETAIL, DWG, pipes, rohr, Sanitation, soupape, supply, tubulação, tuyau, valves, ventil, water
