COMMUNITY CLUBHOUSE DESIGN

COMMUNITY CLUBHOUSE DESIGN

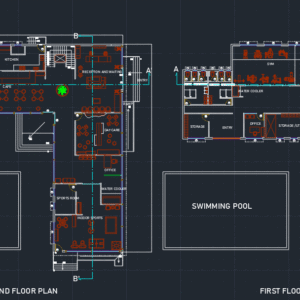

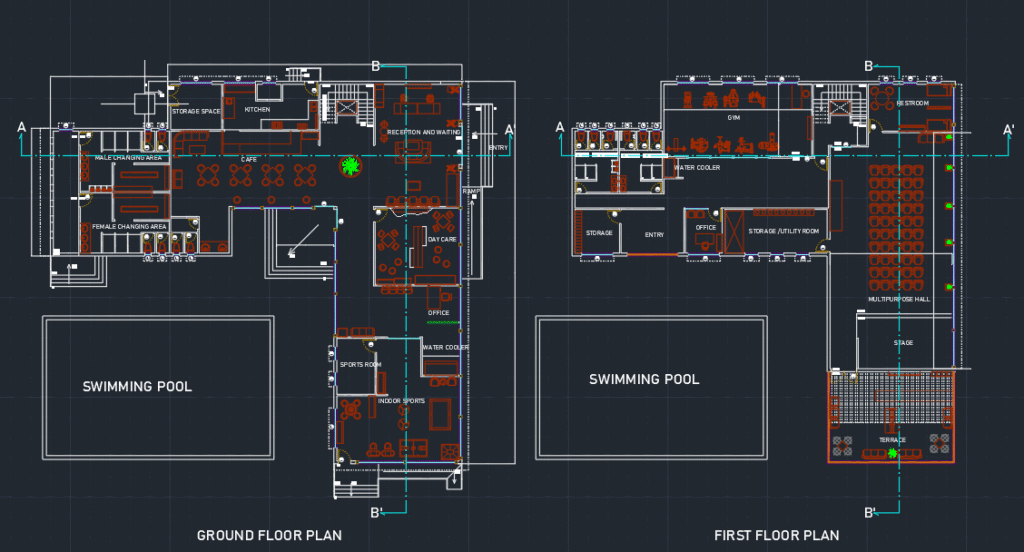

The plan consist of reception, daycare, indoor sports, swimming pool, cafeteria, washrooms, multipurpose hall, gym, etc.
the plan is detailed out with varied and appropriate lineweight made in 1:1 scale. the version used is 2022Autocad.

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
English
Materials
Concrete, Glass, Masonry, Wood
Units
Metric
Area
1000 – 2499 m² (10763.9 – 26899.0 ft²)
Features
A/C, Pool, Elevator
Uploaded by
SBarchitects
Category
Entertainment, Leisure & Sports
Published
Jun 26, 2023
Price $5.00
