Concrete Walkway DWG Block for AutoCAD

Concrete Walkway DWG Block for AutoCAD

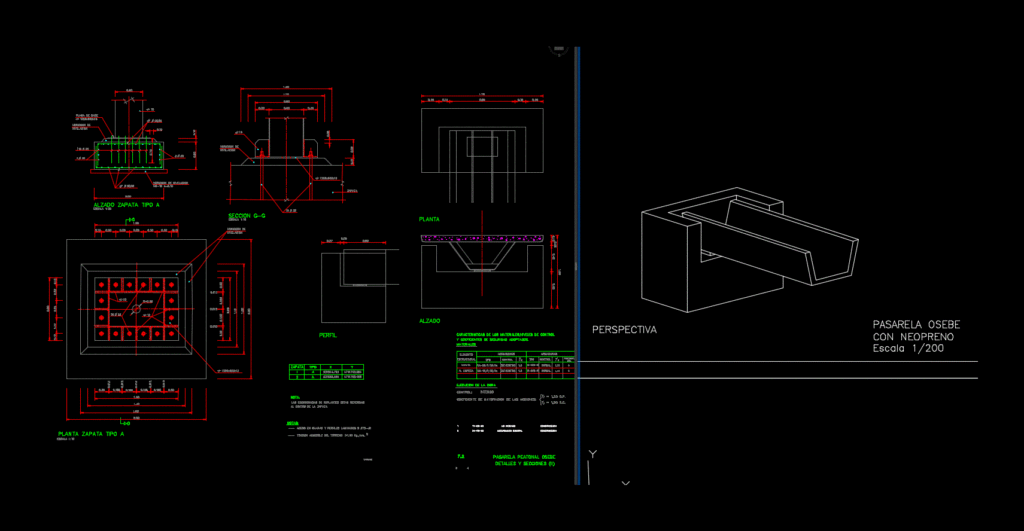

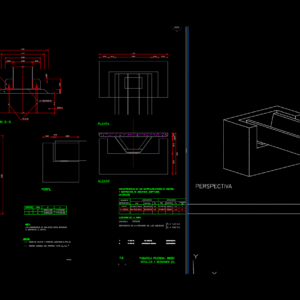

Concrete walkway; reinforced with steel reinforcements and neoprene supports.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

several, pedestrian walkway osebe, execution of the work, control:, coefficient of increase of the shares:, c.p., s.c., cm., element, structural, concrete, armor, kind, control, kind, control, coating., normal, shoe, statistical, characteristics of control, security coefficients adopted., materials, concrete, leveling, base plate, scale, concrete, leveling, scale, scale, section, shoe, concrete, leveling, leveling concrete, Notes:, permissible ground tension, lifting shoe type, plant type shoe, sheet steel sheet, shoe, kind, details sections, note:, the stakeout coordinates are referred to, to the center of the shoe, intense, normal, statistical, h. cleaning, general modification, raised, profile, plant, perspective, osebe walkway, scale, with neoprene, the indicated, building

Raw text data extracted from CAD file:

0 3 20 / / 0 20 / 20 G VARIAS PASARELA PEATONAL OSEBE 7.2 3 4 EJECUCION DE LA OBRA CONTROL: COEFICIENTE DE MAYORACION DE LAS ACCIONES: f f = 1,35 C.P. = 1,50 S.C. 1.5 1.15 cm. C S ELEMENTO ESTRUCTURAL HORMIGONES ARMADURAS TIPO CONTROL TIPO CONTROL RECUBR. B-500-S NORMAL 4 ZAPATA ESTADISTICO CARACTERISTICAS DE LOS MATERIALES,NIVELES DE CONTROL Y COEFICIENTES DE SEGURIDAD ADOPTADOS. MATERIALES 3 20 3 20 20 20 20 20 2.00 0.80 0.10 HORMIGON DE NIVELACION PLACA DE BASE 0.10 16 32 0.70 1200x900x15 ESCALA 1:20 1.20 0.20 0.20 0.20 0.20 0.20 0.10 0.10 HORMIGON DE NIVELACION R=0.06 1.20 1.40 1.60 0.20 0.20 0.185 0.185 0.185 0.185 0.012 0.012 0.012 0.012 0.012 0.10 0.10 0.23 0.23 0.24 0.90 1.30 0.90 1.10 0.012 0.012 0.012 0.20 0.20 0.232 0.232 16 32 1200x900x15 12 ESCALA 1:10 G G ESCALA 1:10 SECCION G-G ZAPATA 0.20 0.20 0.50 0.90 1.10 1.30 HORMIGON DE NIVELACION 12 0.25 0.10 0.05 1200x900x15 16 32 HORMIGON DE NIVELACION HM-15 e=0.10 NOTAS: TENSION ADMISIBLE DEL TERRENO 1.50 Kg./cm. V 2 0.80 10 ALZADO ZAPATA TIPO A 2.00 2.00 PLANTA ZAPATA TIPO A 10 ACERO EN CHAPAS Y PERFILES LAMINADOS S 275-JR HA-25/P/20/IIa ZAPATA TIPO X Y 1 A 2 A 531544.783 4741743.264 531558.296 4741739.458 DETALLES Y SECCIONES (II) NOTA: LAS COORDENADAS DE REPLANTEO ESTAN REFERIDAS AL CENTRO DE LA ZAPATA INTENSO 1.5 1.15 B-500-S NORMAL 4 ESTADISTICO HM-15/P/20/IIa H. LIMPIEZA 0 24-09-02 MODIFICACION GENERAL ALZADO PERFIL PLANTA PERSPECTIVA PASARELA OSEBE Escala 1/200 CON NEOPRENO 1 11-06-03 LO INDICADO CONSTRUCCION CONSTRUCCION 1.75 0.95 0.15 0.25 0.15 0.25 0.27 0.05 0.60 1.05 0.53 0.42 0.10 0.05
