Connection For Home DWG Block for AutoCAD

Connection For Home DWG Block for AutoCAD

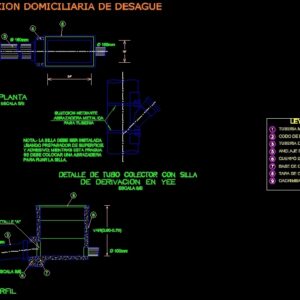

SEWER CONNECTION FOR HOME

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Mts., see detail, Of subjection, profile, scale, Hookah pvc iso dn inc ring, Registry box base, Registration box lid, Securing by, For pipe, Metal clamp, Detail of pipe manifold with chair, Of derivation in yee, scale, plant, Discharge pipe uf iso dn mm, Using surface preparer, While it stands, legend, To secure the chair., Uf iso dn mm, Register box body, Pipe matrix uf iso dn mm, Concrete anchor, A clamp should be placed, scale, The chair must be installed, Nipple pvc, see detail, Mts., Detail of home connection of drainage

Raw text data extracted from CAD file:

0.75 A 1.00 mts. 0.2 12" 24" 9 1 VER DETALLE DE SUJECION 2 9 1 2 8 7 9 PERFIL ESCALA S/E CACHIMBA PVC ISO 4435 S-25 DN 200-160 MMx160 INC ANILLO BASE DE CAJA DE REGISTRO TAPA DE CAJA DE REGISTRO SUJECION MEDIANTE PARA TUBERIA ABRAZADERA METALICA DETALLE DE TUBO COLECTOR CON SILLA DE DERIVACION EN YEE 2 1 6 5 3 5 3 7 ESCALA S/E PLANTA \A1;VAR(0.60-0.70) \U+2205 6 100mm 8 5 \U+2205 3 160mm 6 \U+2205 100mm TUBERIA DE DESCARGA DE PVC- U UF ISO 4435, DN 160 MM USANDO PREPARADOR DE SUPERFICIE Y ADHESIVO; MIENTRAS ESTA FRAGUA LEYENDA PARA FIJAR LA SILLA. CODO DE PVC- U UF ISO 4435, DN 160 MM CUERPO DE CAJA DE REGISTRO TUBERIA MATRIZ PVC- U UF ISO 4435, DN 160 MM ANCLAJE DE CONCRETO f'c=140kg/cm2 SE DEBE COLOCAR UNA ABRAZADERA ESCALA S/E NOTA.- LA SILLA DEBE SER INSTALADA 160mm NIPLE PVC \LDETALLE "A" VER DETALLE "A" 0.75 A 1.00 mts. 5 12" 24" DETALLE DE CONEXION DOMICILIARIA DE DESAGUE

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, connection, DWG, home, kläranlage, sewer, treatment plant
