Construction Of Balcony DWG Section for AutoCAD

Construction Of Balcony DWG Section for AutoCAD

castellated beam section is used

Drawing labels, details, and other text information extracted from the CAD file:

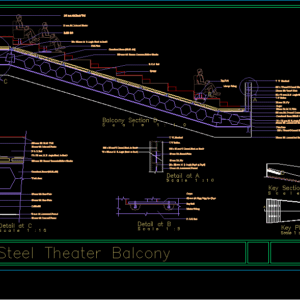

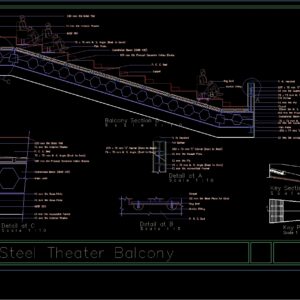

steel theater balcony, key section aa’, key plan, t. w. handrail, t.w batten, mortar filling, rag bolt, carpet, p. c. c. bed, wield joint, detail at b, detail at c, detail at a, balcony section d, fish plate

Raw text data extracted from CAD file:

\A1;72200.0000 Steel Theater Balcony Key Section AA' S c a l e 1 : 2 0 0 Key Plan Scale 1 : 200 75 x 75 mm M. S. Angle (Back to Back) 12 mm thk Gusset Plate T. W. Handrail T.W Batten 200 x 75 mm 'C' Cannel (Back to Back) 12 mm thk Ply 12 mm thk Accoustical Pannel Castellated Beam (ISMB 400) 12 mm thk Internal Plaster 150 mm thk Precast Concrete Hollow Blocks 12 mm thk Base Plate IMSB 350 75 x 75 mm M. S. Angle (Back to Back) 230 mm thk Brick Wall 12 mm thk Internal Plaster !2 mm thk Accoustial Pannel Mortar Filling Rag Bolt 25 mm thk Base Plate for Chair Carpet 12 mm thk Base Plate P. C. C. Bed \A1; \A1; P. C. C. Bed Wield Joint S c a l e 1 : 5 Detail at B Detail at C S c a l e 1 : 1 0 Detail at A S c a l e 1 : 1 0 A B C Balcony Section D S c a l e 1 : 1 0 12 mm thk Accoustical Pannel 12 mm thk Ply 200 x 75 mm 'C' Cannel (Back to Back) T.W Batten T. W. Handrail 12 mm thk Gusset Plate 75 x 75 mm M. S. Angle (Back to Back) D A' A Castellated Beam (ISMB 400) 25mm thk M. S. Plate Carpet 150 mm thk Precast Concrete Hollow Blocks 200 x 75 mm 'C' Cannel (Back to Back) 12 mm thk Accoustical Pannel 75 x 75 mm M. S. Angle (Back to Back) 230 mm thk Brick Wall 12 mm thk Internal Plaster 75 x 75 mm M. S. Angle (Back to Back) Castellated Beam (ISMB 400) 150 mm thk Precast Concrete Hollow Blocks P. C. C. Bed IMSB 350 Rag Bolt Mortar Filling Fish Plate Fish Plate Carpet 5 200 x 75 mm 'C' Cannel (Back to Back) 75 x 75 mm M. S. Angle (Back to Back)

Language	English
Drawing Type	Section
Category	Entertainment, Leisure & Sports
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	Auditorium, autocad, balcony, beam, cinema, construction, DWG, section, Theater, theatre
